GPIO Public API
STM32F401RE GPIO Driver

Public functions to interact with the GPIO peripheral. More...

Collaboration diagram for GPIO Public API:

Functions

void gpio_init (GPIO_CFG_ts *gpio_cfg)
 Initializes a GPIO pin according to the given configuration.
void gpio_deinit (GPIO_REGDEF_ts const *gpio_port)
 Deinitializes a GPIO port by resetting its registers to reset values.
void gpio_write (GPIO_REGDEF_ts *gpio_port, uint8_t gpio_pin, PIN_STATUS_te pin_status)
 Drives a GPIO output pin high or low.
PIN_STATUS_te gpio_read (GPIO_REGDEF_ts const *gpio_port, uint8_t gpio_pin)
 Reads the current logic level of a GPIO input pin.
void gpio_clear_interrupt (EXTI_LINES_te exti_line)
 Clears the EXTI pending flag for the given interrupt line.
void gpio_get_name (GPIO_REGDEF_ts const *gpio_port, char *name)
 Returns the name string of a GPIO port (e.g. "GPIOA").

Detailed Description

Public functions to interact with the GPIO peripheral.

Function Documentation

◆ gpio_init()

void gpio_init ( GPIO_CFG_ts * gpio_cfg)

Initializes a GPIO pin according to the given configuration.

Enables the peripheral clock for the port, then configures output type, speed, pull mode, alternate function, and pin mode. For interrupt mode, also configures SYSCFG EXTICR, EXTI IMR, RTSR/FTSR, and enables the corresponding NVIC interrupt line.

Parameters
[in]gpio_cfgPointer to the GPIO configuration structure.
See also
gpio_init

Definition at line 29 of file stm32f401re_gpio.c.

29 {
30 // Enable the clock for the GPIO peripheral
31 gpio_set_pclk(gpio_cfg->port, ENABLE);
32
33 // Configure GPIO output type
34 gpio_cfg->port->GPIO_OTYPER &= ~(0b1 << gpio_cfg->pin);
35 gpio_cfg->port->GPIO_OTYPER |= gpio_cfg->output_type << gpio_cfg->pin;
36
37 // Configure GPIO speed
38 gpio_cfg->port->GPIO_OSPEEDR &= ~(0b11 << gpio_cfg->pin * 2);
39 gpio_cfg->port->GPIO_OSPEEDR |= gpio_cfg->output_speed << gpio_cfg->pin * 2;
40
41 // Configure GPIO pull-up pull-down
42 gpio_cfg->port->GPIO_PUPDR &= ~(0b11 << gpio_cfg->pin * 2);
43 gpio_cfg->port->GPIO_PUPDR |= gpio_cfg->pull_mode << gpio_cfg->pin * 2;
44
45 // Configure GPIO alternate function (2 bits per pin in AFR[0] for pins 0-7, AFR[1] for pins 8-15)
46 uint32_t afr_index = gpio_cfg->pin >> 3; // pin / 8 selects AFR[0] or AFR[1]
47 uint32_t afr_shift = (gpio_cfg->pin & 0x7) * 4; // (pin % 8) * 4 gives the bit offset
48
49 gpio_cfg->port->GPIO_AFR[afr_index] &= ~(0xFu << afr_shift);
50 gpio_cfg->port->GPIO_AFR[afr_index] |= ((uint32_t)gpio_cfg->alternate_function << afr_shift);
51
52 // Configure GPIO mode
53 if(gpio_cfg->mode != GPIO_MODE_INTERRUPT) {
54 gpio_cfg->port->GPIO_MODER &= ~(0b11 << gpio_cfg->pin * 2);
55 gpio_cfg->port->GPIO_MODER |= gpio_cfg->mode << gpio_cfg->pin * 2;
56 }
57 else {
58 // Enable the peripheral clock for SYSCFG
59 RCC->RCC_APB2ENR |= (0b1 << 14);
60
61 // Route the GPIO pin to the EXTI line via SYSCFG_EXTICRx
62 if(gpio_cfg->pin < 4) {
63 SYSCFG->SYSCFG_EXTICR1 &= ~(0b1111 << gpio_cfg->pin * 4);
64 SYSCFG->SYSCFG_EXTICR1 |= (get_syscfg_code(gpio_cfg->port)) << gpio_cfg->pin * 4;
65 }
66 else if(gpio_cfg->pin < 8) {
67 SYSCFG->SYSCFG_EXTICR2 &= ~(0b1111 << (gpio_cfg->pin - 4) * 4);
68 SYSCFG->SYSCFG_EXTICR2 |= (get_syscfg_code(gpio_cfg->port)) << (gpio_cfg->pin - 4) * 4;
69 }
70 else if(gpio_cfg->pin < 12) {
71 SYSCFG->SYSCFG_EXTICR3 &= ~(0b1111 << (gpio_cfg->pin - 8) * 4);
72 SYSCFG->SYSCFG_EXTICR3 |= (get_syscfg_code(gpio_cfg->port)) << (gpio_cfg->pin - 8) * 4;
73 }
74 else {
75 SYSCFG->SYSCFG_EXTICR4 &= ~(0b1111 << (gpio_cfg->pin - 12) * 4);
76 SYSCFG->SYSCFG_EXTICR4 |= (get_syscfg_code(gpio_cfg->port)) << (gpio_cfg->pin - 12) * 4;
77 }
78
79 // Unmask the EXTI line for this pin
80 EXTI->EXTI_IMR |= 0b1 << gpio_cfg->pin;
81
82 // Configure edge trigger
83 switch(gpio_cfg->interrupt_trigger) {
84 case GPIO_INTERRUPT_TRIGGER_RE:
85 EXTI->EXTI_RTSR |= 0b1 << gpio_cfg->pin;
86 break;
87 case GPIO_INTERRUPT_TRIGGER_FE:
88 EXTI->EXTI_FTSR |= 0b1 << gpio_cfg->pin;
89 break;
90 case GPIO_INTERRUPT_TRIGGER_RFE:
91 EXTI->EXTI_RTSR |= 0b1 << gpio_cfg->pin;
92 EXTI->EXTI_FTSR |= 0b1 << gpio_cfg->pin;
93 break;
94 }
95
96 // Enable the corresponding NVIC interrupt line
97 uint8_t exti_position = get_exti_position(gpio_cfg);
98 nvic_set_interrupt(exti_position, ENABLE);
99 }
100}
ENABLE
@ ENABLE
Definition common.h:100
nvic_set_interrupt
void nvic_set_interrupt(IRQn_te interrupt_line, EN_STATUS_te en_status)
Enables or disables an interrupt line in the NVIC.
Definition arm_cortex_m4_nvic.c:23
get_syscfg_code
static PORT_CODES_ts get_syscfg_code(GPIO_REGDEF_ts const *port)
Returns the SYSCFG port code for a GPIO port instance.
Definition stm32f401re_gpio.c:221
get_exti_position
static uint8_t get_exti_position(GPIO_CFG_ts const *gpio_cfg)
Returns the IRQ number for the EXTI line corresponding to a GPIO pin.
Definition stm32f401re_gpio.c:244
gpio_set_pclk
static void gpio_set_pclk(GPIO_REGDEF_ts const *gpio_port, EN_STATUS_te en_status)
Enables or disables the peripheral clock for a GPIO port.
Definition stm32f401re_gpio.c:188
GPIO_INTERRUPT_TRIGGER_RE
@ GPIO_INTERRUPT_TRIGGER_RE
Definition stm32f401re_gpio.h:152
GPIO_INTERRUPT_TRIGGER_RFE
@ GPIO_INTERRUPT_TRIGGER_RFE
Definition stm32f401re_gpio.h:154
GPIO_INTERRUPT_TRIGGER_FE
@ GPIO_INTERRUPT_TRIGGER_FE
Definition stm32f401re_gpio.h:153
GPIO_MODE_INTERRUPT
@ GPIO_MODE_INTERRUPT
Definition stm32f401re_gpio.h:84
SYSCFG
#define SYSCFG
Definition stm32f401re.h:736
RCC
#define RCC
Definition stm32f401re.h:734
EXTI
#define EXTI
Definition stm32f401re.h:735
GPIO_CFG_ts::port
GPIO_REGDEF_ts * port
Definition stm32f401re_gpio.h:170
GPIO_CFG_ts::pull_mode
GPIO_PULL_MODE_te pull_mode
Definition stm32f401re_gpio.h:185
GPIO_CFG_ts::alternate_function
GPIO_ALTERNATE_FUNCTION_te alternate_function
Definition stm32f401re_gpio.h:188
GPIO_CFG_ts::interrupt_trigger
GPIO_INTERRUPT_TRIGGER_te interrupt_trigger
Definition stm32f401re_gpio.h:191
GPIO_CFG_ts::output_type
GPIO_OUTPUT_TYPE_te output_type
Definition stm32f401re_gpio.h:179
GPIO_CFG_ts::pin
GPIO_PIN_te pin
Definition stm32f401re_gpio.h:173
GPIO_CFG_ts::output_speed
GPIO_OUTPUT_SPEED_te output_speed
Definition stm32f401re_gpio.h:182
GPIO_CFG_ts::mode
GPIO_MODE_te mode
Definition stm32f401re_gpio.h:176
GPIO_REGDEF_ts::GPIO_PUPDR
uint32_t volatile GPIO_PUPDR
Definition stm32f401re.h:99
GPIO_REGDEF_ts::GPIO_OTYPER
uint32_t volatile GPIO_OTYPER
Definition stm32f401re.h:97
GPIO_REGDEF_ts::GPIO_AFR
uint32_t volatile GPIO_AFR[2]
Definition stm32f401re.h:104
GPIO_REGDEF_ts::GPIO_MODER
uint32_t volatile GPIO_MODER
Definition stm32f401re.h:96
GPIO_REGDEF_ts::GPIO_OSPEEDR
uint32_t volatile GPIO_OSPEEDR
Definition stm32f401re.h:98

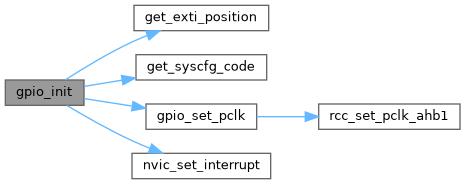

Here is the call graph for this function:

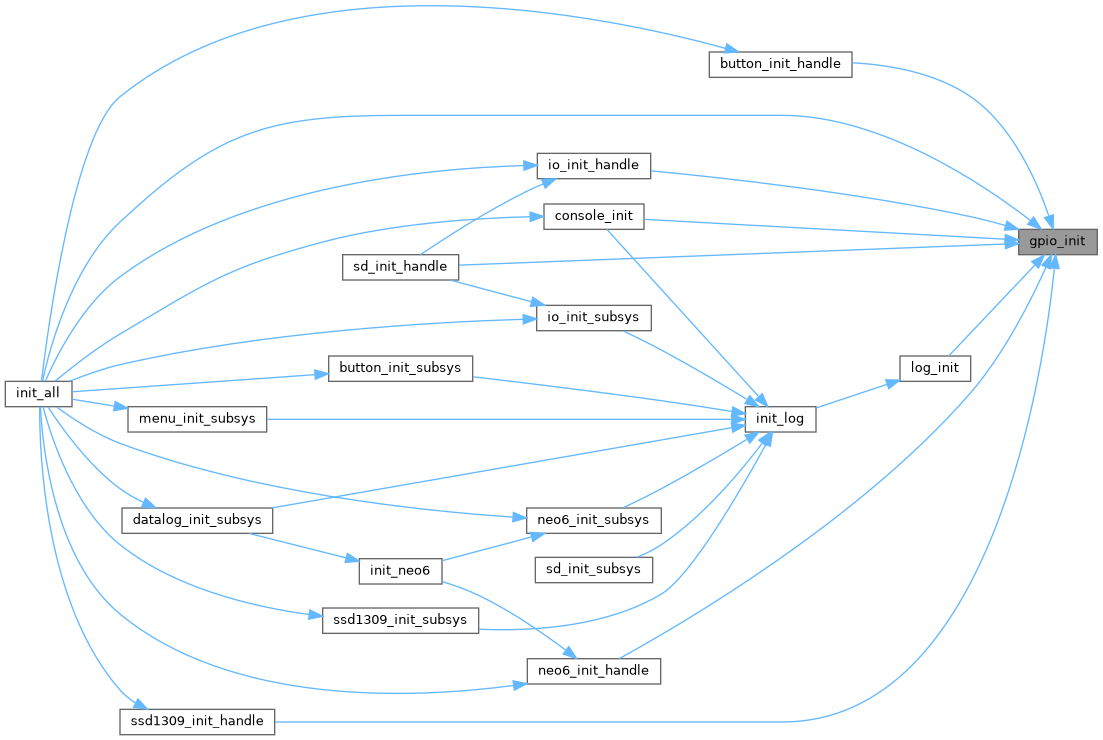

Here is the caller graph for this function:

◆ gpio_deinit()

void gpio_deinit ( GPIO_REGDEF_ts const * gpio_port)

Deinitializes a GPIO port by resetting its registers to reset values.

Triggers an RCC peripheral reset for the given port and then disables its peripheral clock.

Parameters
[in]gpio_portPointer to the GPIO port instance to deinitialize.
See also
gpio_deinit

Definition at line 103 of file stm32f401re_gpio.c.

103 {
104 if(gpio_port == GPIOA) {
105 rcc_reset_periph_ahb1(RCC_AHB1RSTR_GPIOARST);
106 }
107 else if(gpio_port == GPIOB) {
108 rcc_reset_periph_ahb1(RCC_AHB1RSTR_GPIOBRST);
109 }
110 else if(gpio_port == GPIOC) {
111 rcc_reset_periph_ahb1(RCC_AHB1RSTR_GPIOCRST);
112 }
113 else if(gpio_port == GPIOD) {
114 rcc_reset_periph_ahb1(RCC_AHB1RSTR_GPIODRST);
115 }
116 else if(gpio_port == GPIOE) {
117 rcc_reset_periph_ahb1(RCC_AHB1RSTR_GPIOERST);
118 }
119 else if(gpio_port == GPIOH) {
120 rcc_reset_periph_ahb1(RCC_AHB1RSTR_GPIOHRST);
121 }
122
123 gpio_set_pclk(gpio_port, DISABLE);
124}
DISABLE
@ DISABLE
Definition common.h:97
rcc_reset_periph_ahb1
void rcc_reset_periph_ahb1(RCC_AHB1RSTR_te periph_position)
Resets an AHB1 peripheral via RCC_AHB1RSTR.
Definition stm32f401re_rcc.c:117
GPIOC
#define GPIOC
Definition stm32f401re.h:741
GPIOB
#define GPIOB
Definition stm32f401re.h:740
GPIOD
#define GPIOD
Definition stm32f401re.h:742
GPIOA
#define GPIOA
Definition stm32f401re.h:739
GPIOH
#define GPIOH
Definition stm32f401re.h:744
GPIOE
#define GPIOE
Definition stm32f401re.h:743
RCC_AHB1RSTR_GPIOHRST
@ RCC_AHB1RSTR_GPIOHRST
Definition stm32f401re.h:646
RCC_AHB1RSTR_GPIODRST
@ RCC_AHB1RSTR_GPIODRST
Definition stm32f401re.h:644
RCC_AHB1RSTR_GPIOBRST
@ RCC_AHB1RSTR_GPIOBRST
Definition stm32f401re.h:642
RCC_AHB1RSTR_GPIOARST
@ RCC_AHB1RSTR_GPIOARST
Definition stm32f401re.h:641
RCC_AHB1RSTR_GPIOCRST
@ RCC_AHB1RSTR_GPIOCRST
Definition stm32f401re.h:643
RCC_AHB1RSTR_GPIOERST
@ RCC_AHB1RSTR_GPIOERST
Definition stm32f401re.h:645
Here is the call graph for this function:

◆ gpio_write()

void gpio_write ( GPIO_REGDEF_ts * gpio_port,
uint8_t gpio_pin,
PIN_STATUS_te pin_status )

Drives a GPIO output pin high or low.

Parameters
[in]gpio_portPointer to the GPIO port instance.
[in]gpio_pinPin number to write (0–15).
[in]pin_statusHIGH to drive the pin high, LOW to drive it low.
See also
gpio_write

Definition at line 127 of file stm32f401re_gpio.c.

127 {
128 switch(pin_status) {
129 case HIGH:
130 gpio_port->GPIO_ODR |= (0x1 << gpio_pin);
131 break;
132 case LOW:
133 gpio_port->GPIO_ODR &= ~(0x1 << gpio_pin);
134 break;
135 }
136}
HIGH
@ HIGH
Definition common.h:89
LOW
@ LOW
Definition common.h:86
GPIO_REGDEF_ts::GPIO_ODR
uint32_t volatile GPIO_ODR
Definition stm32f401re.h:101

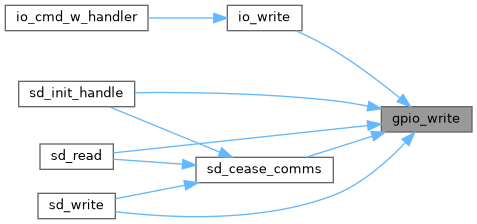

Here is the caller graph for this function:

◆ gpio_read()

PIN_STATUS_te gpio_read ( GPIO_REGDEF_ts const * gpio_port,
uint8_t gpio_pin )

Reads the current logic level of a GPIO input pin.

Parameters
[in]gpio_portPointer to the GPIO port instance.
[in]gpio_pinPin number to read (0–15).
Returns
HIGH if the pin reads logic high, LOW if it reads logic low.
See also
gpio_read

Definition at line 139 of file stm32f401re_gpio.c.

139 {
140 PIN_STATUS_te status = (gpio_port->GPIO_IDR >> gpio_pin) & 0x1;
141 return status;
142}
PIN_STATUS_te
PIN_STATUS_te
Represents the logical level of a GPIO pin.
Definition common.h:84
Here is the caller graph for this function:

◆ gpio_clear_interrupt()

void gpio_clear_interrupt ( EXTI_LINES_te exti_line)

Clears the EXTI pending flag for the given interrupt line.

Must be called at the end of an EXTI interrupt handler to acknowledge the interrupt and prevent immediate re-entry. Writes 1 to the EXTI_PR bit for exti_line (write-1-to-clear).

Parameters
[in]exti_lineThe EXTI line number corresponding to the GPIO pin.
See also
gpio_clear_interrupt

Definition at line 145 of file stm32f401re_gpio.c.

145 {
146 EXTI->EXTI_PR = 0x1 << exti_line;
147}

◆ gpio_get_name()

void gpio_get_name ( GPIO_REGDEF_ts const * gpio_port,
char * name )

Returns the name string of a GPIO port (e.g. "GPIOA").

Writes a null-terminated string of the form "GPIOx" into name. The caller must ensure name points to a buffer of at least GPIO_NAME_LEN + 1 bytes.

Parameters
[in]gpio_portPointer to the GPIO port instance.
[out]namePointer to the destination buffer.

Returns the name string of a GPIO port (e.g. "GPIOA").

See also
gpio_get_name

Definition at line 150 of file stm32f401re_gpio.c.

150 {
151 const char gpio[] = "GPIO";
152 uint8_t gpio_len = get_str_len(gpio);
153 uint8_t pos_counter = 0;
154
155 while(pos_counter < gpio_len) {
156 name[pos_counter] = gpio[pos_counter];
157 pos_counter++;
158 }
159
160 if(gpio_port == GPIOA) name[pos_counter] = 'A';
161 else if(gpio_port == GPIOB) name[pos_counter] = 'B';
162 else if(gpio_port == GPIOC) name[pos_counter] = 'C';
163 else if(gpio_port == GPIOD) name[pos_counter] = 'D';
164 else if(gpio_port == GPIOE) name[pos_counter] = 'E';
165 else if(gpio_port == GPIOH) name[pos_counter] = 'H';
166 pos_counter++;
167
168 name[pos_counter] = '\0';
169}
get_str_len
uint32_t get_str_len(char const *str)
Returns the length of a string, excluding the null terminator.
Definition common.c:22
Here is the call graph for this function:
