RCC Public API

Public functions to interact with the RCC peripheral. More...

Collaboration diagram for RCC Public API:

Functions
uint32_t	rcc_get_sysclk (void)
	Returns the current system clock frequency in Hz.
uint32_t	rcc_get_ahb_clk (void)
	Returns the current AHB bus clock frequency in Hz.
uint32_t	rcc_get_apb1_clk (void)
	Returns the current APB1 (low-speed) peripheral bus clock frequency in Hz.
uint32_t	rcc_get_apb2_clk (void)
	Returns the current APB2 (high-speed) peripheral bus clock frequency in Hz.
void	rcc_set_pclk_ahb1 (RCC_AHB1ENR_te periph_position, EN_STATUS_te en_status)
	Enables or disables the peripheral clock for an AHB1 peripheral.
void	rcc_set_pclk_apb1 (RCC_APB1ENR_te periph_position, EN_STATUS_te en_status)
	Enables or disables the peripheral clock for an APB1 peripheral.
void	rcc_set_pclk_apb2 (RCC_APB2ENR_te periph_position, EN_STATUS_te en_status)
	Enables or disables the peripheral clock for an APB2 peripheral.
void	rcc_reset_periph_ahb1 (RCC_AHB1RSTR_te periph_position)
	Resets an AHB1 peripheral via RCC_AHB1RSTR.
void	rcc_reset_periph_apb1 (RCC_APB1RSTR_te periph_position)
	Resets an APB1 peripheral via RCC_APB1RSTR.
void	rcc_reset_periph_apb2 (RCC_APB2RSTR_te periph_position)
	Resets an APB2 peripheral via RCC_APB2RSTR.
void	rcc_reset_bkpd (void)
	Resets the backup domain (RTC, backup registers, backup SRAM).

Detailed Description

Public functions to interact with the RCC peripheral.

Function Documentation

rcc_get_sysclk()

uint32_t rcc_get_sysclk

(

void

)

Returns the current system clock frequency in Hz.

Reads the SWS (system clock switch status) field in RCC_CFGR to determine the active clock source:

• SWS = 0: HSI (16 MHz)
• SWS = 1: HSE (8 MHz)
• SWS = 2: PLL (not yet implemented, returns 0)

Returns

System clock frequency in Hz, or 0 if the source is unrecognized.

See also

rcc_get_sysclk

Definition at line 21 of file stm32f401re_rcc.c.

                              {
    uint8_t rcc_cfgr_sws = ((RCC->RCC_CFGR >> RCC_CFGR_SWS) & 0x3);

    switch(rcc_cfgr_sws) {
        case 0:
            return 16000000; // HSI
        case 1:
            return 8000000;  // HSE
        /* case 2: PLL — not yet implemented */
    }

    return 0;
}

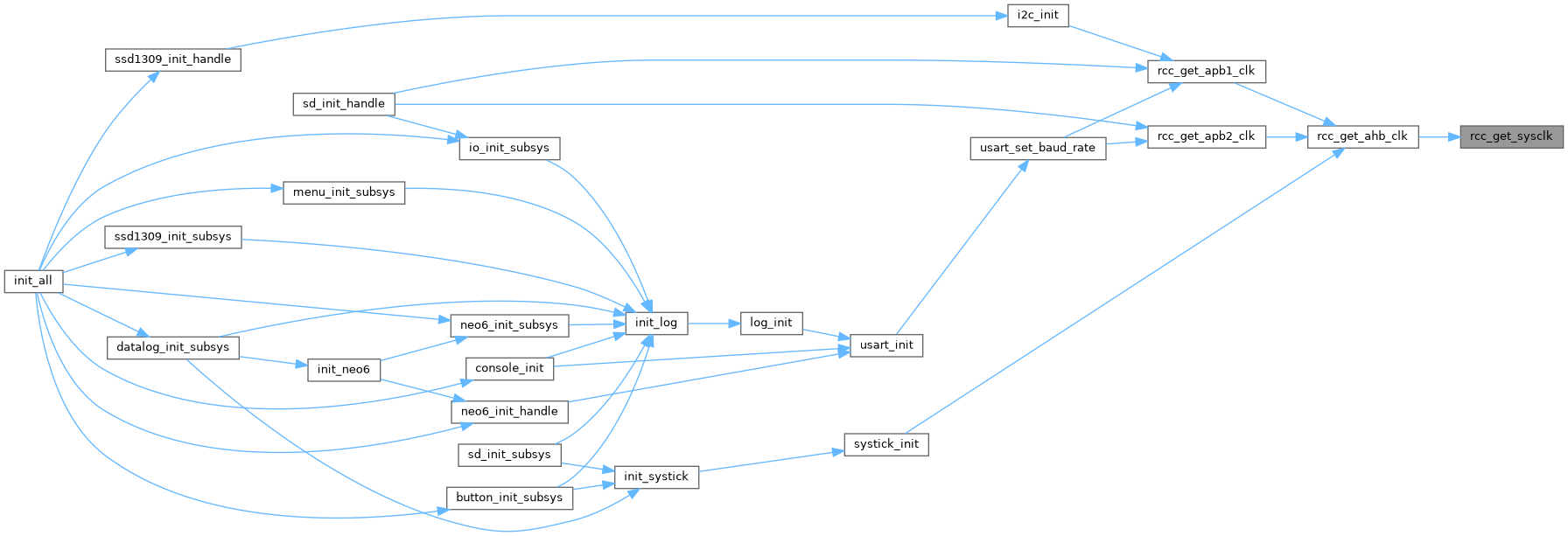

Here is the caller graph for this function:

rcc_get_ahb_clk()

uint32_t rcc_get_ahb_clk

(

void

)

Returns the current AHB bus clock frequency in Hz.

Reads the HPRE prescaler field from RCC_CFGR and divides the system clock accordingly. The prescaler values map as follows:

• HPRE ≤ 7: divide by 1 (no prescaling)
• HPRE 8–11: divide by 2, 4, 8, 16
• HPRE 12–15: divide by 64, 128, 256, 512

Returns

AHB clock frequency in Hz.

See also

rcc_get_ahb_clk

Definition at line 36 of file stm32f401re_rcc.c.

                               {
    uint32_t system_clock = rcc_get_sysclk();
    uint8_t rcc_cfgr_hpre = ((RCC->RCC_CFGR >> RCC_CFGR_HPRE) & 0xF);
    uint16_t ahb_division_factor;

    if(rcc_cfgr_hpre <= 7) {
        ahb_division_factor = 1;
    }
    else if(rcc_cfgr_hpre <= 11) {
        ahb_division_factor = 0x1 << (rcc_cfgr_hpre - 7);
    }
    else {
        ahb_division_factor = 0x1 << (rcc_cfgr_hpre - 6);
    }

    return system_clock / ahb_division_factor;
}

Here is the call graph for this function:

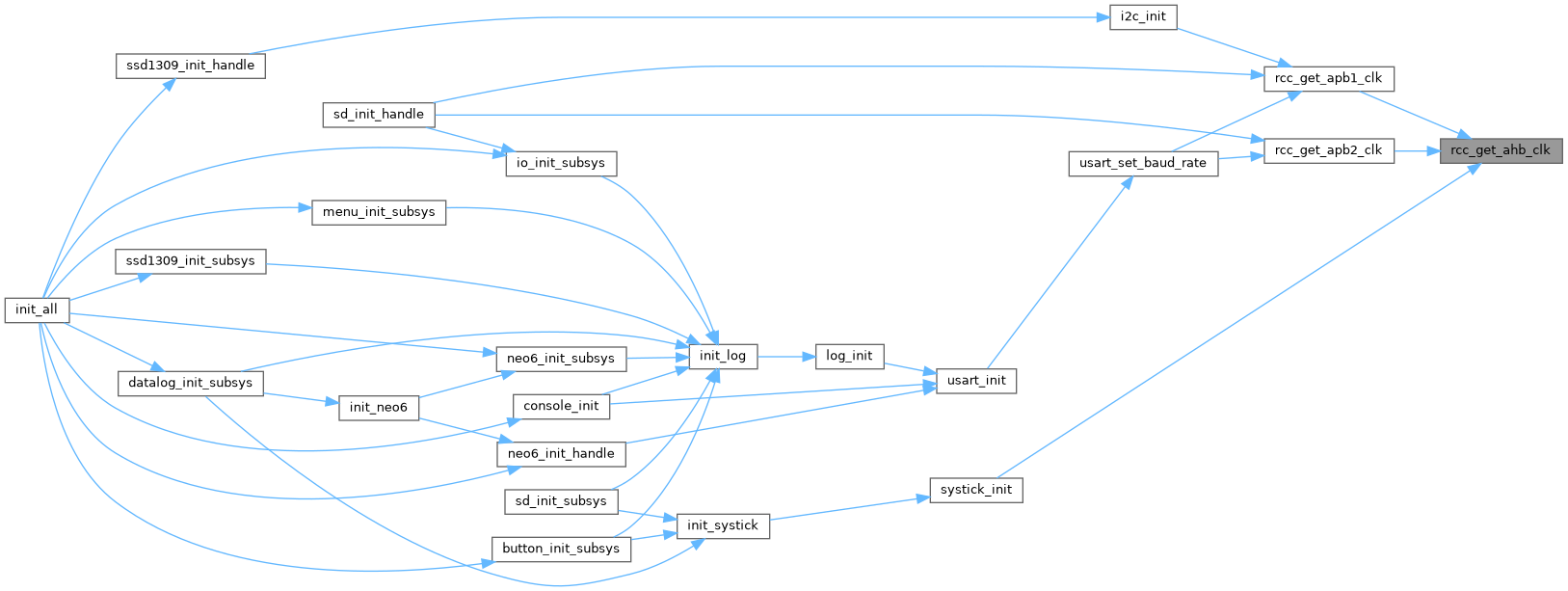

Here is the caller graph for this function:

rcc_get_apb1_clk()

uint32_t rcc_get_apb1_clk

(

void

)

Returns the current APB1 (low-speed) peripheral bus clock frequency in Hz.

Reads the PPRE1 prescaler field from RCC_CFGR and divides the AHB clock accordingly. PPRE1 < 4 maps to no prescaling; PPRE1 ≥ 4 maps to divide by 2^(PPRE1 - 3).

Returns

APB1 clock frequency in Hz.

Returns the current APB1 (low-speed) peripheral bus clock frequency in Hz.

See also

rcc_get_apb1_clk

Definition at line 55 of file stm32f401re_rcc.c.

                                {
    uint32_t ahb_clock = rcc_get_ahb_clk();
    uint8_t rcc_cfgr_ppre1 = ((RCC->RCC_CFGR >> RCC_CFGR_PPRE1) & 0x7);
    uint8_t apb1_division_factor;

    if(rcc_cfgr_ppre1 < 4) {
        apb1_division_factor = 1;
    }
    else {
        apb1_division_factor = 0x1 << (rcc_cfgr_ppre1 - 3);
    }

    return ahb_clock / apb1_division_factor;
}

Here is the call graph for this function:

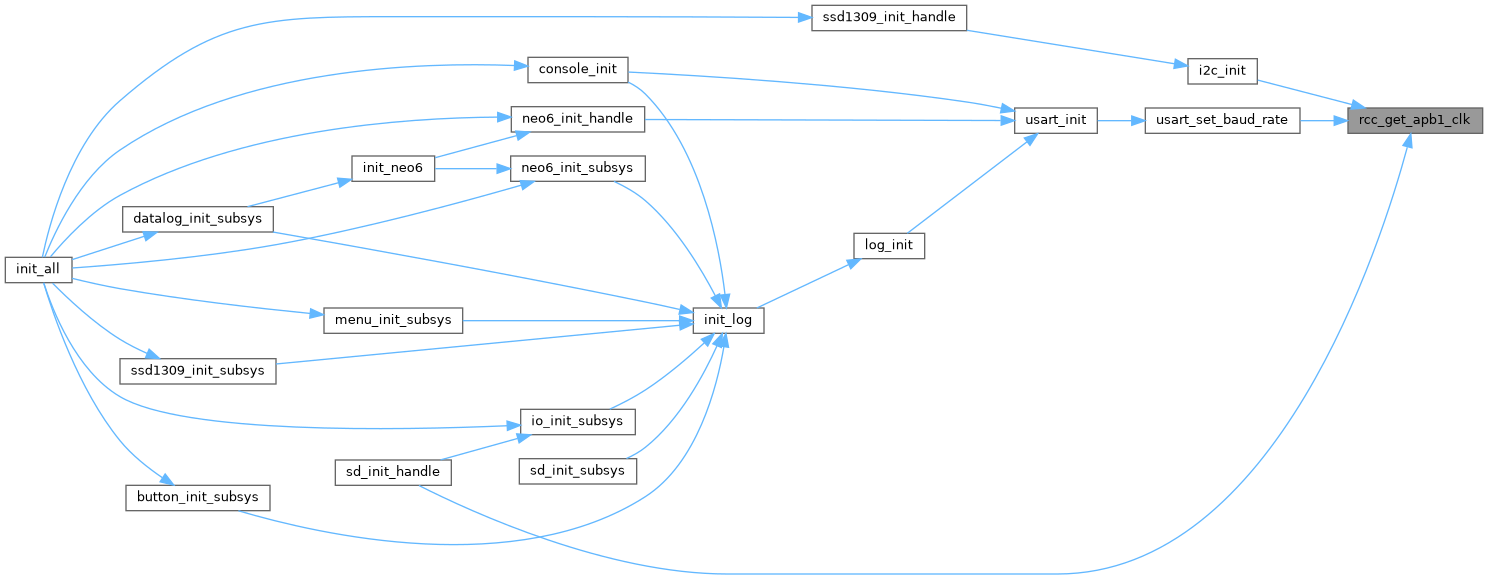

Here is the caller graph for this function:

rcc_get_apb2_clk()

uint32_t rcc_get_apb2_clk

(

void

)

Returns the current APB2 (high-speed) peripheral bus clock frequency in Hz.

Reads the PPRE2 prescaler field from RCC_CFGR and divides the AHB clock accordingly. Same mapping as rcc_get_apb1_clk but using PPRE2.

Returns

APB2 clock frequency in Hz.

Returns the current APB2 (high-speed) peripheral bus clock frequency in Hz.

See also

rcc_get_apb2_clk

Definition at line 71 of file stm32f401re_rcc.c.

                                {
    uint32_t ahb_clock = rcc_get_ahb_clk();
    uint8_t rcc_cfgr_ppre2 = ((RCC->RCC_CFGR >> RCC_CFGR_PPRE2) & 0x7);
    uint8_t apb2_division_factor;

    if(rcc_cfgr_ppre2 < 4) {
        apb2_division_factor = 1;
    }
    else {
        apb2_division_factor = 0x1 << (rcc_cfgr_ppre2 - 3);
    }

    return ahb_clock / apb2_division_factor;
}

Here is the call graph for this function:

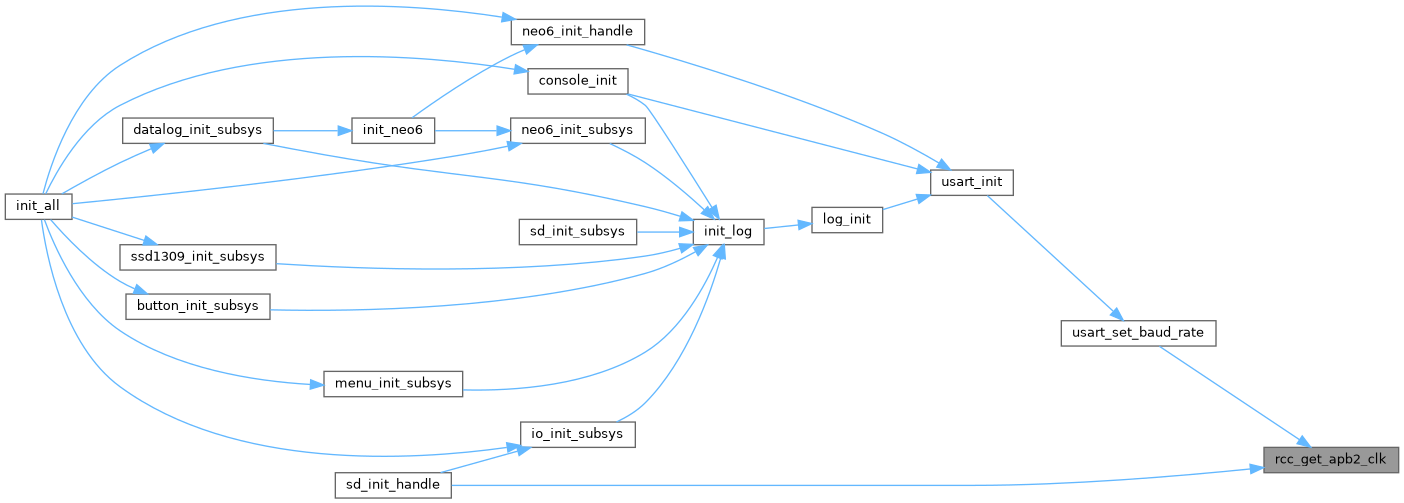

Here is the caller graph for this function:

rcc_set_pclk_ahb1()

void rcc_set_pclk_ahb1	(	RCC_AHB1ENR_te	periph_position,
		EN_STATUS_te	en_status )

Enables or disables the peripheral clock for an AHB1 peripheral.

Parameters

[in]	periph_position	Bit position in RCC_AHB1ENR for the target peripheral.
[in]	en_status	ENABLE to enable the clock, DISABLE to disable it.

See also

rcc_set_pclk_ahb1

Definition at line 87 of file stm32f401re_rcc.c.

                                                                               {
    if(en_status == ENABLE) {
        RCC->RCC_AHB1ENR |= (0x1 << periph_position);
    }
    else if(en_status == DISABLE) {
        RCC->RCC_AHB1ENR &= ~(0x1 << periph_position);
    }
}

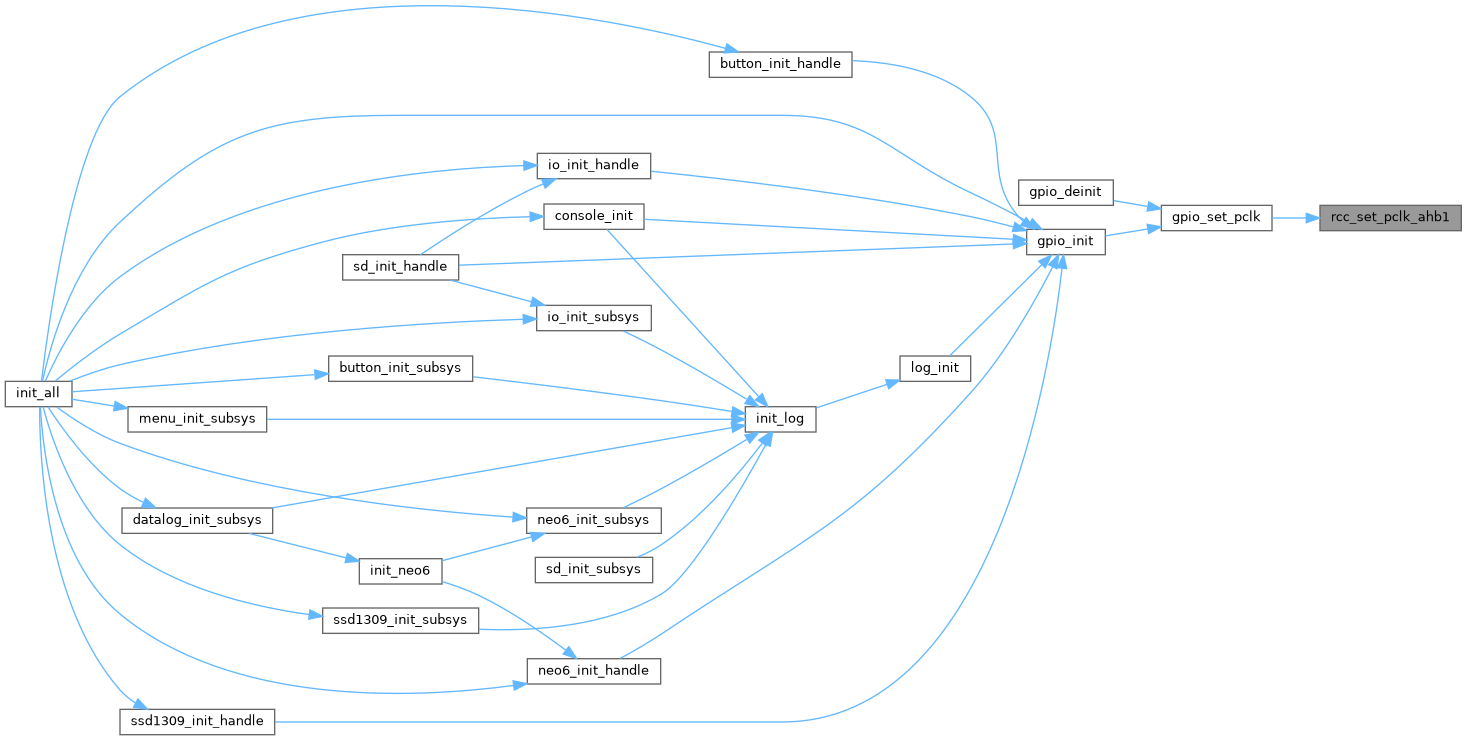

Here is the caller graph for this function:

rcc_set_pclk_apb1()

void rcc_set_pclk_apb1	(	RCC_APB1ENR_te	periph_position,
		EN_STATUS_te	en_status )

Enables or disables the peripheral clock for an APB1 peripheral.

Parameters

[in]	periph_position	Bit position in RCC_APB1ENR for the target peripheral.
[in]	en_status	ENABLE to enable the clock, DISABLE to disable it.

See also

rcc_set_pclk_apb1

Definition at line 97 of file stm32f401re_rcc.c.

                                                                               {
    if(en_status == ENABLE) {
        RCC->RCC_APB1ENR |= (0x1 << periph_position);
    }
    else if(en_status == DISABLE) {
        RCC->RCC_APB1ENR &= ~(0x1 << periph_position);
    }
}

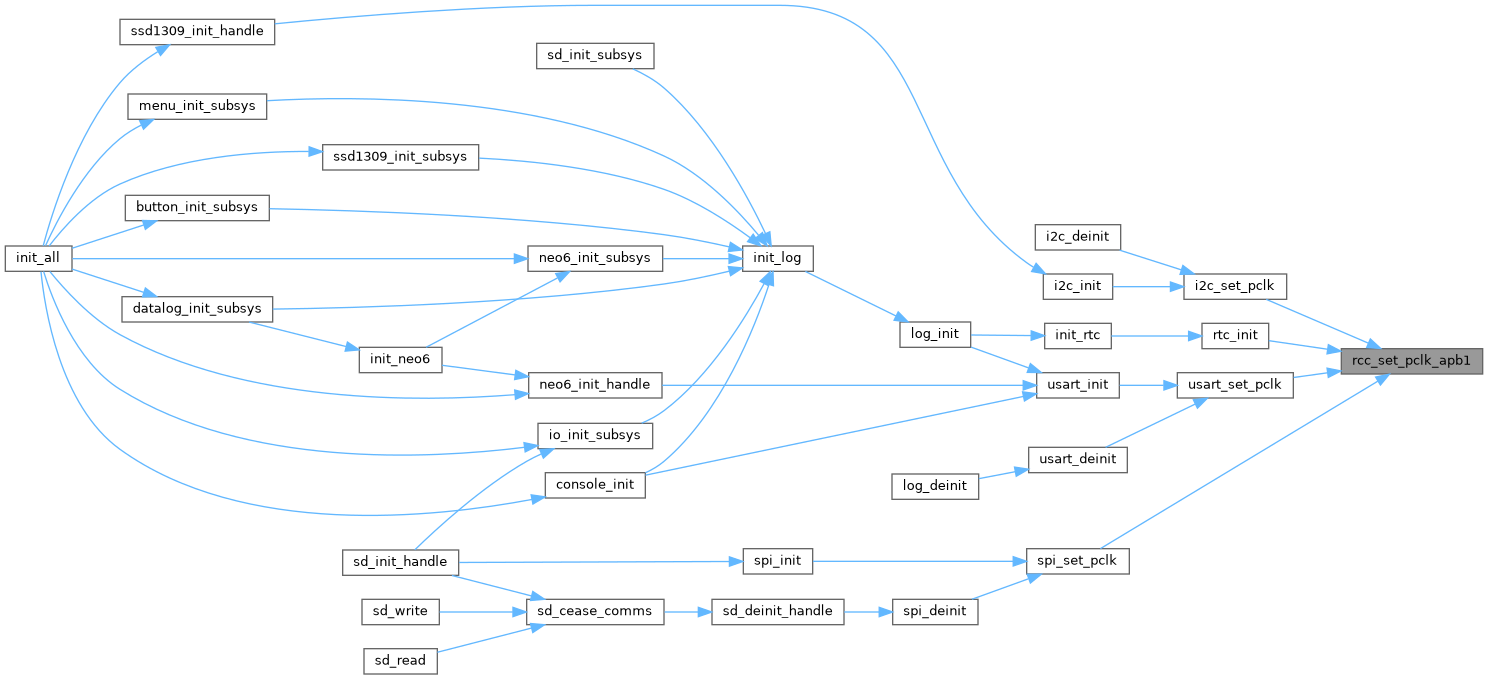

Here is the caller graph for this function:

rcc_set_pclk_apb2()

void rcc_set_pclk_apb2	(	RCC_APB2ENR_te	periph_position,
		EN_STATUS_te	en_status )

Enables or disables the peripheral clock for an APB2 peripheral.

Parameters

[in]	periph_position	Bit position in RCC_APB2ENR for the target peripheral.
[in]	en_status	ENABLE to enable the clock, DISABLE to disable it.

See also

rcc_set_pclk_apb2

Definition at line 107 of file stm32f401re_rcc.c.

                                                                               {
    if(en_status == ENABLE) {
        RCC->RCC_APB2ENR |= (0x1 << periph_position);
    }
    else if(en_status == DISABLE) {
        RCC->RCC_APB2ENR &= ~(0x1 << periph_position);
    }
}

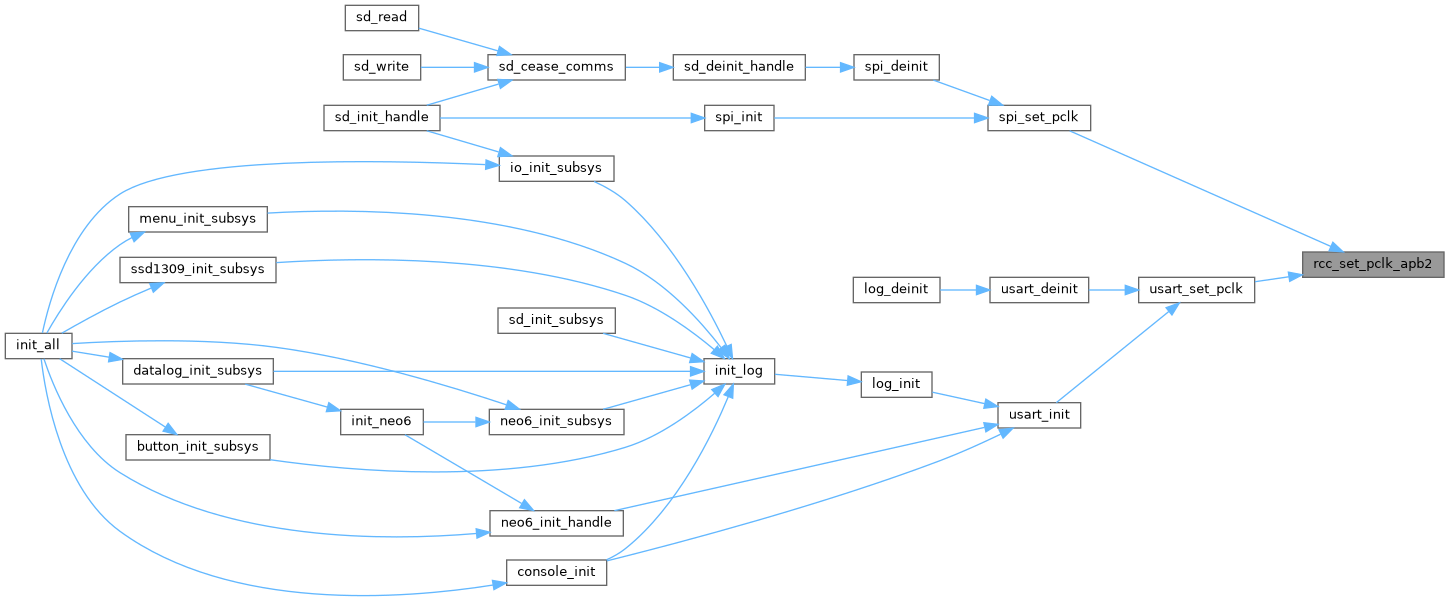

Here is the caller graph for this function:

rcc_reset_periph_ahb1()

void rcc_reset_periph_ahb1

(

RCC_AHB1RSTR_te

periph_position

)

Resets an AHB1 peripheral via RCC_AHB1RSTR.

Sets the reset bit then clears it, triggering a peripheral reset pulse.

Parameters

[in]

periph_position

Bit position in RCC_AHB1RSTR for the target peripheral.

See also

rcc_reset_periph_ahb1

Definition at line 117 of file stm32f401re_rcc.c.

                                                            {
    RCC->RCC_AHB1RSTR |= (0x1 << periph_position);
    RCC->RCC_AHB1RSTR &= ~(0x1 << periph_position);
}

Here is the caller graph for this function:

rcc_reset_periph_apb1()

void rcc_reset_periph_apb1

(

RCC_APB1RSTR_te

periph_position

)

Resets an APB1 peripheral via RCC_APB1RSTR.

Sets the reset bit then clears it, triggering a peripheral reset pulse.

Parameters

[in]

periph_position

Bit position in RCC_APB1RSTR for the target peripheral.

See also

rcc_reset_periph_apb1

Definition at line 123 of file stm32f401re_rcc.c.

                                                            {
    RCC->RCC_APB1RSTR |= (0x1 << periph_position);
    RCC->RCC_APB1RSTR &= ~(0x1 << periph_position);
}

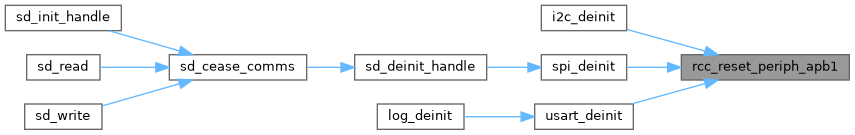

Here is the caller graph for this function:

rcc_reset_periph_apb2()

void rcc_reset_periph_apb2

(

RCC_APB2RSTR_te

periph_position

)

Resets an APB2 peripheral via RCC_APB2RSTR.

Sets the reset bit then clears it, triggering a peripheral reset pulse.

Parameters

[in]

periph_position

Bit position in RCC_APB2RSTR for the target peripheral.

See also

rcc_reset_periph_apb2

Definition at line 129 of file stm32f401re_rcc.c.

                                                            {
    RCC->RCC_APB2RSTR |= (0x1 << periph_position);
    RCC->RCC_APB2RSTR &= ~(0x1 << periph_position);
}

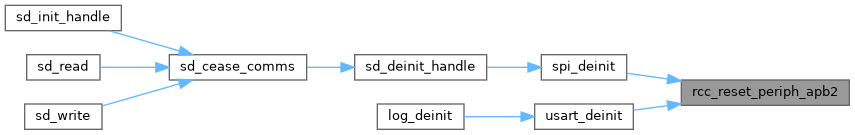

Here is the caller graph for this function:

rcc_reset_bkpd()

void rcc_reset_bkpd

(

void

)

Resets the backup domain (RTC, backup registers, backup SRAM).

Sets then clears the BDRST bit in RCC_BDCR, resetting all backup domain logic including the RTC, backup registers, and backup SRAM controller.

Note

This also clears the RTC clock source selection. Re-configure the RTC clock source after calling this function.

Resets the backup domain (RTC, backup registers, backup SRAM).

See also

rcc_reset_bkpd

Definition at line 135 of file stm32f401re_rcc.c.

                          {
    RCC->RCC_BDCR |= (0x1 << RCC_BDCR_BDRST);
    RCC->RCC_BDCR &= ~(0x1 << RCC_BDCR_BDRST);
}
