stm32f401re_rcc.h File Reference

STM32F401RE RCC driver public API. More...

#include "stm32f401re.h"
#include "common.h"

Include dependency graph for stm32f401re_rcc.h:

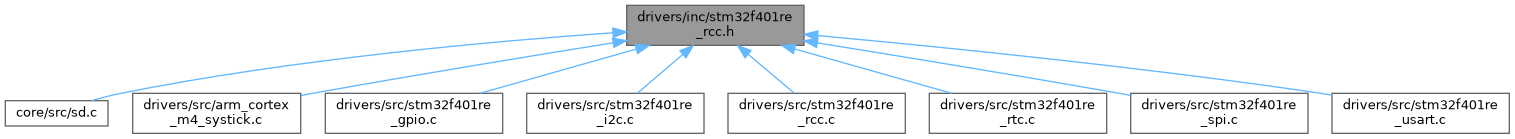

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
uint32_t	rcc_get_sysclk (void)
	Returns the current system clock frequency in Hz.
uint32_t	rcc_get_ahb_clk (void)
	Returns the current AHB bus clock frequency in Hz.
uint32_t	rcc_get_apb1_clk (void)
	Returns the current APB1 (low-speed) peripheral bus clock frequency in Hz.
uint32_t	rcc_get_apb2_clk (void)
	Returns the current APB2 (high-speed) peripheral bus clock frequency in Hz.
void	rcc_set_pclk_ahb1 (RCC_AHB1ENR_te periph_position, EN_STATUS_te en_status)
	Enables or disables the peripheral clock for an AHB1 peripheral.
void	rcc_set_pclk_apb1 (RCC_APB1ENR_te periph_position, EN_STATUS_te en_status)
	Enables or disables the peripheral clock for an APB1 peripheral.
void	rcc_set_pclk_apb2 (RCC_APB2ENR_te periph_position, EN_STATUS_te en_status)
	Enables or disables the peripheral clock for an APB2 peripheral.
void	rcc_reset_periph_ahb1 (RCC_AHB1RSTR_te periph_position)
	Resets an AHB1 peripheral via RCC_AHB1RSTR.
void	rcc_reset_periph_apb1 (RCC_APB1RSTR_te periph_position)
	Resets an APB1 peripheral via RCC_APB1RSTR.
void	rcc_reset_periph_apb2 (RCC_APB2RSTR_te periph_position)
	Resets an APB2 peripheral via RCC_APB2RSTR.
void	rcc_reset_bkpd (void)
	Resets the backup domain (RTC, backup registers, backup SRAM).

Detailed Description

STM32F401RE RCC driver public API.

Author

github.com/Baksi675

This module provides a software interface to the STM32F401RE Reset and Clock Control (RCC) peripheral, covering:

• Reading the current system, AHB, APB1, and APB2 clock frequencies
• Enabling and disabling peripheral clocks on AHB1, APB1, and APB2
• Resetting peripherals on AHB1, APB1, and APB2 via the reset registers
• Resetting the backup domain

Clock frequency functions read the current CFGR prescaler fields at call time, so they always reflect the live clock tree configuration.

Note

PLL as system clock source is not yet implemented. Only HSI (16 MHz) and HSE (8 MHz) are currently supported by rcc_get_sysclk.

Version

0.1

Date

2026-01-23

Copyright

Copyright (c) 2026

Definition in file stm32f401re_rcc.h.
