STM32F401RE I2C driver public API. More...

#include "stm32f401re.h"
#include "common.h"

Include dependency graph for stm32f401re_i2c.h:

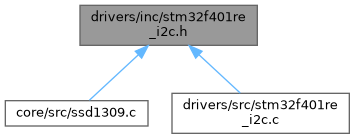

This graph shows which files directly or indirectly include this file:

Classes
struct	I2C_CFG_ts
	Configuration structure for initializing an I2C peripheral. More...

Macros
#define	I2C_NAME_LEN 4
	Length of the null-terminated I2C peripheral name string (e.g. "I2C1").

Enumerations
enum	I2C_CLOCK_STRECH_te { I2C_CLOCK_STRETCH_ON , I2C_CLOCK_STRETCH_OFF }
	I2C slave clock stretching enable/disable. More...
enum	I2C_ACK_te { I2C_ACK_OFF , I2C_ACK_ON }
	I2C acknowledge control. More...
enum	I2C_SPEED_te { I2C_SPEED_100kHz = 100000 , I2C_SPEED_400kHz = 400000 }
	I2C bus speed (SCL frequency). More...

Functions
void	i2c_init (I2C_CFG_ts *i2c_cfg)
	Initializes the I2C peripheral with the given configuration.
void	i2c_deinit (I2C_REGDEF_ts const *i2c_instance)
	Deinitializes the I2C peripheral and disables its clock.
void	i2c_master_send (I2C_REGDEF_ts i2c_instance, uint8_t slave_addr, uint8_t tx_buffer, uint32_t len)
	Blocking I2C master transmit. Sends a start condition, address, and data.
void	i2c_master_send_continue (I2C_REGDEF_ts i2c_instance, uint8_t tx_buffer, uint32_t len)
	Continues a transmission started by i2c_master_send without a new START or address phase.
void	i2c_master_receive (I2C_REGDEF_ts i2c_instance, uint8_t slave_addr, uint8_t rx_buffer, uint32_t len)
	Blocking I2C master receive. Sends a start condition, address, and reads data.
void	i2c_master_set_comm (I2C_REGDEF_ts *i2c_instance, EN_STATUS_te en_status)
	Enables or disables the I2C peripheral and controls bus ownership.
void	i2c_get_name (I2C_REGDEF_ts const i2c_instance, char name)
	Returns the name string of an I2C peripheral instance (e.g. "I2C1").

Detailed Description

STM32F401RE I2C driver public API.

Author: github.com/Baksi675

This module provides a blocking master-mode I2C driver for the STM32F401RE. It supports standard mode (100 kHz) and fast mode (400 kHz) and handles peripheral clock management internally.

The driver separates bus ownership from peripheral initialization:

i2c_init configures the peripheral registers but does not enable it.
i2c_master_set_comm enables the peripheral and asserts the bus (ENABLE) or generates a STOP condition and releases the bus (DISABLE).

All transfer functions are blocking — they poll status flags and return only after the transfer completes.

Typical usage:

Populate an I2C_CFG_ts and call i2c_init
Call i2c_master_set_comm with ENABLE to take the bus
Call i2c_master_send or i2c_master_receive
Call i2c_master_set_comm with DISABLE to release the bus

Version: 0.1

Date: 2026-01-30

Definition in file stm32f401re_i2c.h.
