Button Public APIs

Functions
ERR_te	button_init_subsys (void)
	Initializes the button subsystem.
ERR_te	button_deinit_subsys (void)
	Deinitializes the button subsystem.
ERR_te	button_start_subsys (void)
	Starts the button subsystem.
ERR_te	button_stop_subsys (void)
	Stops the button subsystem.
ERR_te	button_init_handle (BUTTON_CFG_ts *button_cfg, BUTTON_HANDLE_ts **button_handle_o)
	Initializes and registers a button handle.
ERR_te	button_deinit_handle (BUTTON_HANDLE_ts const *button_handle)
	Deinitializes a button handle.
ERR_te	button_run_handle (BUTTON_HANDLE_ts *button_handle)
	Runs the state machine for a single button handle.
ERR_te	button_run_handle_all (void)
	Runs the state machine for all registered button handles.
ERR_te	button_get_pushed_state (BUTTON_HANDLE_ts const *button_handle, bool *pushed_state_o)
	Retrieves the pushed state of a button.
ERR_te	button_get_held_state (BUTTON_HANDLE_ts const *button_handle, bool *held_state_o)
	Retrieves the held state of a button.

Detailed Description

Function Documentation

button_init_subsys()

ERR_te button_init_subsys

(

void

)

Initializes the button subsystem.

See also

button_init_subsys

Definition at line 159 of file button.c.

                                {
    ERR_te err;

    if(internal_state.initialized) {
        return ERR_INITIALIZATION_FAILURE;
    }

    internal_state = (struct internal_state_s){ 0 };

    internal_state.log_level = LOG_LEVEL_INFO;
    internal_state.subsys = MODULES_BUTTON;
    internal_state.initialized = true;
    internal_state.started = false;

    init_log();
    init_systick();

    err = cmd_register(&button_cmd_client_info);
    if(err != ERR_OK) {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "button_init_subsys: cmd_register error"
        );

        return err;
    }
    LOG_INFO(
        internal_state.subsys,
        internal_state.log_level,
        "button_init_subsys: subsys initialized"
    );

    return ERR_OK;
}

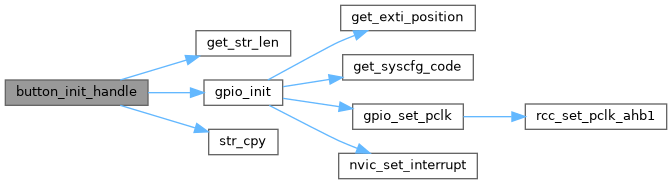

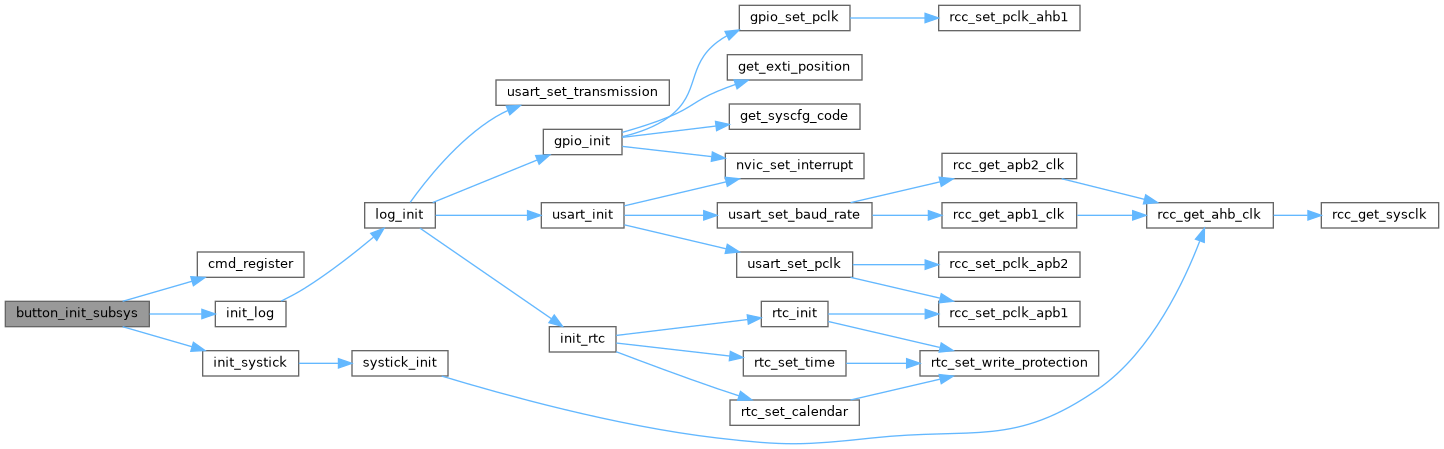

Here is the call graph for this function:

Here is the caller graph for this function:

button_deinit_subsys()

ERR_te button_deinit_subsys

(

void

)

Deinitializes the button subsystem.

See also

button_deinit_subsys

Definition at line 196 of file button.c.

                                  {
    if(internal_state.initialized && !internal_state.started) {
        internal_state = (struct internal_state_s){ 0 };

        cmd_deregister(&button_cmd_client_info);
    }
    else {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "button_deinit_subsys: subsys is not initialized or not stopped"
        );

        return ERR_DEINITIALIZATION_FAILURE;
    }
    LOG_INFO(
        internal_state.subsys,
        internal_state.log_level,
        "button_deinit_subsys: subsys deinitialized"
    );

    return ERR_OK;
}

Here is the call graph for this function:

button_start_subsys()

ERR_te button_start_subsys

(

void

)

Starts the button subsystem.

See also

button_start_subsys

Definition at line 221 of file button.c.

                                 {
    if(internal_state.initialized && !internal_state.started) {
        internal_state.started = true;

        LOG_INFO(
            internal_state.subsys,
            internal_state.log_level,
            "button_start_subsys: subsys started"
        );
    }
    else {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "button_start_subsys: subsys not initialized or already started"
        );

        return ERR_UNKNOWN;
    }

    return ERR_OK;
}

Here is the caller graph for this function:

button_stop_subsys()

ERR_te button_stop_subsys

(

void

)

Stops the button subsystem.

See also

button_stop_subsys

Definition at line 245 of file button.c.

                                {
    if(internal_state.initialized && internal_state.started) {
        internal_state.started = false;

        LOG_INFO(
            internal_state.subsys,
            internal_state.log_level,
            "button_stop_subsys: subsys stopped"
        );
    }
    else {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "button_stop_subsys: subsys not initialized or already already stopped"
        );

        return ERR_UNKNOWN;
    }

    return ERR_OK;
}

button_init_handle()

ERR_te button_init_handle	(	BUTTON_CFG_ts *	button_cfg,
		BUTTON_HANDLE_ts **	button_handle_o )

Initializes and registers a button handle.

See also

button_init_handle

Definition at line 269 of file button.c.

                                                                                         {
    if(!internal_state.initialized) {
        LOG_INFO(
            internal_state.subsys,
            internal_state.log_level,
            "button_init_handle: subsys not initialized"
        );

        return ERR_UNINITIALZIED_OBJECT;
    }

    if(internal_state.button_num == CONFIG_BUTTON_MAX_OBJECTS) {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "button_init_handle: subsystem out of memory space"
        );

        return ERR_NOT_ENOUGH_SPACE;
    }

    if(!button_cfg) {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "button_init_handle: invalid argument"
        );
        return ERR_INVALID_ARGUMENT;
    }

    GPIO_CFG_ts gpio = { 0 };
    gpio.port = button_cfg->gpio_port;
    gpio.pin = button_cfg->gpio_pin;
    gpio.output_type = GPIO_OUTPUT_TYPE_PUSHPULL;
    gpio.mode = GPIO_MODE_INPUT;

    gpio_init(&gpio);

    for(uint32_t i = 0; i < CONFIG_BUTTON_MAX_OBJECTS; i++) {
        if(internal_state.buttons[i].in_use == false) {
            str_cpy(
                internal_state.buttons[i].name,
                button_cfg->name,
                get_str_len(button_cfg->name) + 1
            );

            internal_state.buttons[i].debounce_limit_ms = button_cfg->debounce_limit_ms;
            internal_state.buttons[i].gpio_port = button_cfg->gpio_port;
            internal_state.buttons[i].gpio_pin = button_cfg->gpio_pin;
            internal_state.buttons[i].pushed_type = button_cfg->pushed_type;
            internal_state.buttons[i].held_limit_ms = button_cfg->held_limit_ms;
            internal_state.buttons[i].held = false;
            internal_state.buttons[i].held_started_ms = 0;
            internal_state.buttons[i].debounce_started = false;
            internal_state.buttons[i].held_started = false;
            internal_state.buttons[i].pushed = false;
            internal_state.buttons[i].debounce_started_ms = 0;
            internal_state.buttons[i].in_use = true;

            *button_handle_o = &internal_state.buttons[i];

            internal_state.button_num++;

            LOG_INFO(
                internal_state.subsys,
                internal_state.log_level,
                "button_init_handle: button handle %s initialized",
                internal_state.buttons[i].name
            );

            break;
        }
    }

    return ERR_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

button_deinit_handle()

ERR_te button_deinit_handle

(

BUTTON_HANDLE_ts const *

button_handle

)

Deinitializes a button handle.

See also

button_deinit_handle

Definition at line 347 of file button.c.

                                                                   {
    if(internal_state.started) {
        LOG_INFO(
            internal_state.subsys,
            internal_state.log_level,
            "button_deinit_handle: subsys not stopped"
        );
        return ERR_ILLEGAL_ACTION;
    }

    if(internal_state.button_num == 0) {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "button_deinit_handle: no such handle to deinitialize"
        );

        return ERR_UNINITIALZIED_OBJECT;
    }

    for(uint32_t i = 0; i < CONFIG_BUTTON_MAX_OBJECTS; i++) {
        if(&internal_state.buttons[i] == button_handle) {
            uint8_t name_len = get_str_len(internal_state.buttons[i].name) + 1;
            char name[name_len];
            str_cpy(name, internal_state.buttons[i].name, name_len);

            internal_state.buttons[i] = (BUTTON_HANDLE_ts){ 0 };

            internal_state.button_num--;

            LOG_INFO(
                internal_state.subsys,
                internal_state.log_level,
                "button_deinit_handle: io handle %s deinitialized",
                name
            );

            break;
        }

        if(i == CONFIG_BUTTON_MAX_OBJECTS - 1) {
            LOG_ERROR(
                internal_state.subsys,
                internal_state.log_level,
                "button_deinit_handle: no such handle to deinitialize"
            );

            return ERR_UNINITIALZIED_OBJECT;
        }
    }

    return ERR_OK;
}

Here is the call graph for this function:

button_run_handle()

ERR_te button_run_handle

(

BUTTON_HANDLE_ts *

button_handle

)

Runs the state machine for a single button handle.

Executes the state machine for a single button.

See also

button_run_handle

Definition at line 402 of file button.c.

                                                          {
    if(!internal_state.initialized || !internal_state.started) {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "button_run_handle: subsystem not initialized or started"
        );

        return ERR_UNKNOWN;
    }

    PIN_STATUS_te pin_status = gpio_read(button_handle->gpio_port, button_handle->gpio_pin);

    // If the debounce has not yet been completed, complete it (if it's enabled)
    if(button_handle->pushed == false) {
        if((button_handle->pushed_type == BUTTON_PUSHED_TYPE_HIGH &&
        pin_status == HIGH) ||
        (button_handle->pushed_type == BUTTON_PUSHED_TYPE_LOW &&
        pin_status == LOW)) {
            uint32_t current_ms = systick_get_ms();

            if(!button_handle->debounce_started) {
                button_handle->debounce_started = true;
                button_handle->debounce_started_ms = current_ms;
            }

            if(button_handle->debounce_started &&
            current_ms - button_handle->debounce_started_ms >= button_handle->debounce_limit_ms) {
                button_handle->pushed = true;
                button_handle->debounce_started = false;
            }
        }
        else {
            if(button_handle->debounce_started) {
                button_handle->debounce_started = false;
                button_handle->debounce_started_ms = 0;
            }
        }
    }

    // If the held property is enabled, check if button is held for long enough
    if(button_handle->pushed == true && button_handle->held == false) {
        if((button_handle->pushed_type == BUTTON_PUSHED_TYPE_HIGH &&
        pin_status == HIGH) ||
        (button_handle->pushed_type == BUTTON_PUSHED_TYPE_LOW &&
        pin_status == LOW)) {
            uint32_t current_ms = systick_get_ms();

            if(!button_handle->held_started) {
                button_handle->held_started = true;
                button_handle->held_started_ms = current_ms;
            }

            if(button_handle->held_started &&
            current_ms - button_handle->held_started_ms >= button_handle->held_limit_ms) {
                button_handle->held = true;
                button_handle->held_started = false;
            }
        }
        else {
            if(button_handle->held_started) {
                button_handle->held_started = false;
                button_handle->held_started_ms = 0;
            }
        }
    }

    // If the button has been pushed, check for button release then restore states and counters
    if(button_handle->pushed == true) {
        if((button_handle->pushed_type == BUTTON_PUSHED_TYPE_HIGH &&
        pin_status == LOW) ||
        (button_handle->pushed_type == BUTTON_PUSHED_TYPE_LOW &&
        pin_status == HIGH)) {
            uint32_t current_ms = systick_get_ms();

            if(!button_handle->debounce_started) {
                button_handle->debounce_started = true;
                button_handle->debounce_started_ms = current_ms;
            }

            if(button_handle->debounce_started &&
            current_ms - button_handle->debounce_started_ms >= button_handle->debounce_limit_ms) {
                button_handle->pushed = false;
                button_handle->held = false;
                button_handle->debounce_started = false;
                button_handle->held_started = false;
            }
        }
        else {
            if(button_handle->debounce_started) {
                button_handle->debounce_started = false;
                button_handle->debounce_started_ms = 0;
            }
        }
    }

    return ERR_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

button_run_handle_all()

ERR_te button_run_handle_all

(

void

)

Runs the state machine for all registered button handles.

Runs the state machine for all registered buttons.

See also

button_run_handle_all

Definition at line 502 of file button.c.

                                   {
    for(uint32_t i = 0; i < CONFIG_BUTTON_MAX_OBJECTS; i++) {
        if(internal_state.buttons[i].in_use == true) {
            ERR_te err = button_run_handle(&internal_state.buttons[i]);
            if(err != ERR_OK) {
                return err;
            }
        }
    }

    return ERR_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

button_get_pushed_state()

ERR_te button_get_pushed_state	(	BUTTON_HANDLE_ts const *	button_handle,
		bool *	pushed_state_o )

Retrieves the pushed state of a button.

Retrieves the pushed (pressed) state of a button.

See also

button_get_pushed_state

Definition at line 516 of file button.c.

                                                                                            {
    if(!internal_state.initialized || !internal_state.started) {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "button_get_pushed_state: handle not initialized or subsystem not started"
        );

        return ERR_ILLEGAL_ACTION;
    }

    *pushed_state_o = button_handle->pushed;

    return ERR_OK;
}

Here is the caller graph for this function:

button_get_held_state()

ERR_te button_get_held_state	(	BUTTON_HANDLE_ts const *	button_handle,
		bool *	held_state_o )

Retrieves the held state of a button.

See also

button_get_held_state

Definition at line 533 of file button.c.

                                                                                        {
    if(!internal_state.initialized || !internal_state.started) {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "button_get_held_state: handle not initialized or subsystem not started"
        );

        return ERR_ILLEGAL_ACTION;
    }

    *held_state_o = button_handle->held;

    return ERR_OK;
}

Here is the caller graph for this function:
