button.c File Reference

Button module implementation file. More...

#include "button.h"
#include "arm_cortex_m4_systick.h"
#include "cmd.h"
#include "common.h"
#include "err.h"
#include "stm32f401re_gpio.h"
#include "configuration.h"
#include "log.h"
#include "modules.h"
#include "init.h"

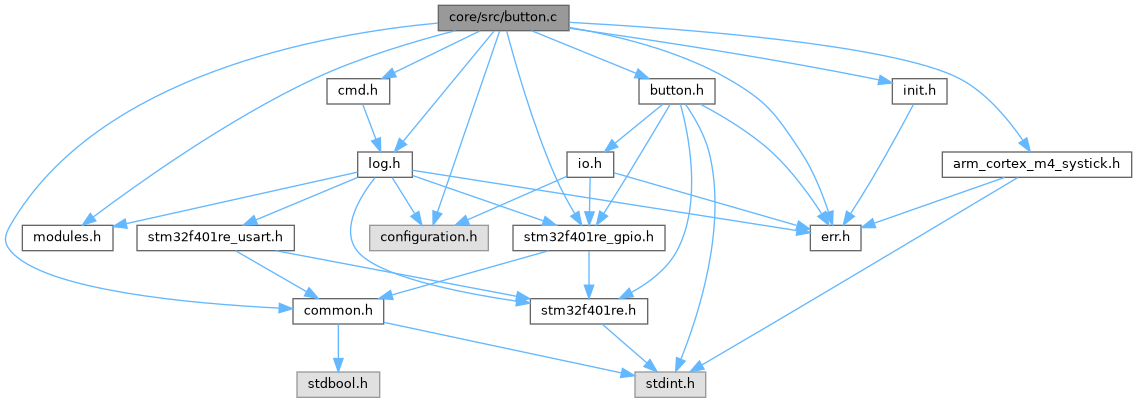

Include dependency graph for button.c:

Go to the source code of this file.

Classes
struct	button_handle_s
	Internal structure representing a single button instance. More...
struct	internal_state_s
	Internal state of the SysTick driver. More...

Functions
static ERR_te	button_getpushed_handler (uint32_t argc, char **argv)
	CLI handler for the "getpushed" command. Reports the debounced pushed state of a button.
static ERR_te	button_getheld_handler (uint32_t argc, char **argv)
	CLI handler for the "getheld" command. Reports the held state of a button.
static ERR_te	button_cmd_info_handler (uint32_t argc, char **argv)
	CLI handler for the "info" command. Logs the names of all registered buttons.
ERR_te	button_init_subsys (void)
	Initializes the button subsystem.
ERR_te	button_deinit_subsys (void)
	Deinitializes the button subsystem.
ERR_te	button_start_subsys (void)
	Starts the button subsystem.
ERR_te	button_stop_subsys (void)
	Stops the button subsystem.
ERR_te	button_init_handle (BUTTON_CFG_ts *button_cfg, BUTTON_HANDLE_ts **button_handle_o)
	Initializes and registers a button handle.
ERR_te	button_deinit_handle (BUTTON_HANDLE_ts const *button_handle)
	Deinitializes a button handle.
ERR_te	button_run_handle (BUTTON_HANDLE_ts *button_handle)
	Runs the state machine for a single button handle.
ERR_te	button_run_handle_all (void)
	Runs the state machine for all registered button handles.
ERR_te	button_get_pushed_state (BUTTON_HANDLE_ts const *button_handle, bool *pushed_state_o)
	Retrieves the pushed state of a button.
ERR_te	button_get_held_state (BUTTON_HANDLE_ts const *button_handle, bool *held_state_o)
	Retrieves the held state of a button.

Variables
static struct internal_state_s	internal_state
	Singleton instance of the button subsystem internal state.
static CMD_INFO_ts	button_cmds []
	Table of CLI commands registered by the button subsystem.
static CMD_CLIENT_INFO_ts	button_cmd_client_info
	Registration descriptor passed to the command subsystem.

Detailed Description

Button module implementation file.

Author

github.com/Baksi675

Version

0.1

Date

2026-01-09

Copyright

Copyright (c) 2026

Definition in file button.c.

Variable Documentation

internal_state

struct internal_state_s internal_state

static

Singleton instance of the button subsystem internal state.

Definition at line 105 of file button.c.

button_cmds

CMD_INFO_ts button_cmds[]

static

Initial value:

= {
    {
        .name = "getpushed",
        .help = "Gets the pushed state, usage: button getpushed <button>",
        .handler = button_getpushed_handler
    },
    {
        .name = "getheld",
        .help = "Gets the held state, usage: button getheld <button>",
        .handler = button_getheld_handler
    },
    {
        .name = "info",
        .help = "Shows button information, usage: button info",
        .handler = button_cmd_info_handler
    }
}

Table of CLI commands registered by the button subsystem.

Each entry maps a command name string to its handler and a short help string. The table is registered with the command subsystem via button_cmd_client_info during button_init_subsys.

Definition at line 120 of file button.c.

                                   {
    {
        .name = "getpushed",
        .help = "Gets the pushed state, usage: button getpushed <button>",
        .handler = button_getpushed_handler
    },
    {
        .name = "getheld",
        .help = "Gets the held state, usage: button getheld <button>",
        .handler = button_getheld_handler
    },
    {
        .name = "info",
        .help = "Shows button information, usage: button info",
        .handler = button_cmd_info_handler
    }
};

button_cmd_client_info

CMD_CLIENT_INFO_ts button_cmd_client_info

static

Initial value:

= {
    .cmds_ptr = button_cmds,
    .num_cmds = sizeof(button_cmds) / sizeof(button_cmds[0]),
    .name = "button",
    .log_level_ptr = &internal_state.log_level
}

Registration descriptor passed to the command subsystem.

Bundles the command table, its size, the subsystem name prefix used on the CLI, and a pointer to the runtime log-level variable so that the command subsystem can adjust verbosity at runtime.

Definition at line 146 of file button.c.

                                                   {
    .cmds_ptr = button_cmds,
    .num_cmds = sizeof(button_cmds) / sizeof(button_cmds[0]),
    .name = "button",
    .log_level_ptr = &internal_state.log_level
};
