STM32F401RE USART driver public API. More...

#include "stm32f401re.h"
#include "common.h"

Include dependency graph for stm32f401re_usart.h:

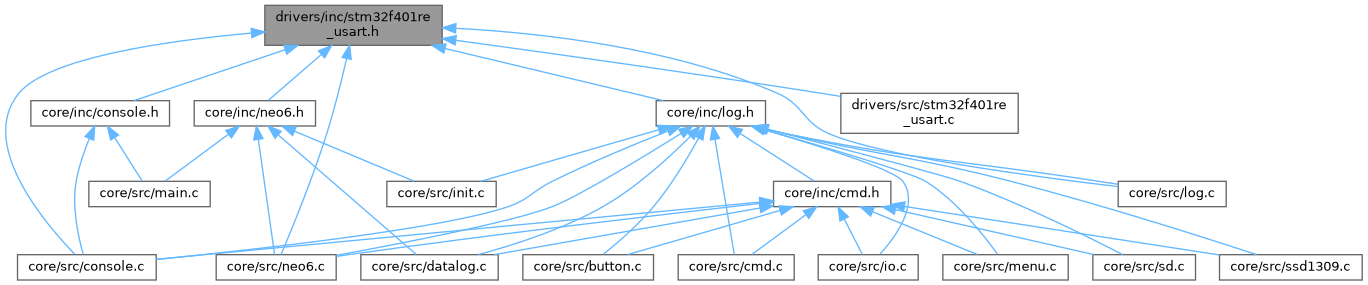

This graph shows which files directly or indirectly include this file:

Classes
struct	USART_CFG_ts
	Configuration structure for initializing a USART peripheral. More...

Macros
#define	USART_NAME_LEN 6
	Length of the null-terminated USART peripheral name string (e.g. "USART1").

Enumerations
enum	USART_MODE_te { USART_MODE_ASYNC , USART_MODE_SYNC }
	USART operating mode. More...
enum	USART_BAUD_RATE_te { USART_BAUD_RATE_1200 = 1200 , USART_BAUD_RATE_2400 = 2400 , USART_BAUD_RATE_9600 = 9600 , USART_BAUD_RATE_19200 = 19200 , USART_BAUD_RATE_38400 = 38400 , USART_BAUD_RATE_57600 = 57600 , USART_BAUD_RATE_115200 = 115200 , USART_BAUD_RATE_230400 = 230400 , USART_BAUD_RATE_460800 = 460800 , USART_BAUD_RATE_921600 = 921600 , USART_BAUD_RATE_2000000 = 2000000 , USART_BAUD_RATE_3000000 = 3000000 }
	USART baud rate in bits per second. More...
enum	USART_PARITY_te { USART_PARITY_DISABLED , USART_PARITY_EVEN , USART_PARITY_ODD }
	USART parity bit configuration. More...
enum	USART_FRAME_DATA_BITS_te { USART_FRAME_DATA_BITS_8 , USART_FRAME_DATA_BITS_9 }
	USART data word length. More...
enum	USART_OVERSAMPLING_te { USART_OVERSAMPLING_16 , USART_OVERSAMPLING_8 }
	USART oversampling ratio. More...
enum	USART_FRAME_STOP_BITS_te { USART_FRAME_STOP_BITS_1 , USART_FRAME_STOP_BITS_0_5 , USART_FRAME_STOP_BITS_2 , USART_FRAME_STOP_BITS_1_5 }
	USART number of stop bits. More...
enum	USART_HW_FLOW_CONTROL_te { USART_HW_FLOW_CONTROL_DISABLED , USART_HW_FLOW_CONTROL_ENABLED }
	USART hardware flow control (RTS/CTS). More...
enum	USART_SAMPLE_BIT_te { USART_SAMPLE_BIT_3 , USART_SAMPLE_BIT_1 }
	USART receiver sample bit method. More...
enum	USART_INTERRUPT_EN_te { USART_INTERRUPT_EN_FALSE , USART_INTERRUPT_EN_TRUE }
	USART RXNE interrupt enable configuration. More...

Functions
void	usart_init (USART_CFG_ts *usart_cfg)
	Initializes the USART peripheral with the given configuration.
void	usart_deinit (USART_REGDEF_ts const *usart_instance)
	Deinitializes the USART peripheral, disables its NVIC interrupt, and disables its clock.
void	usart_send (USART_REGDEF_ts usart_instance, uint8_t tx_buffer, uint32_t len)
	Blocking USART transmit. Sends `len` bytes from `tx_buffer`.
void	usart_receive (USART_REGDEF_ts const usart_instance, uint8_t rx_buffer, uint32_t len)
	Blocking USART receive. Reads `len` bytes into `rx_buffer`.
void	usart_set_transmission (USART_REGDEF_ts *usart_instance, EN_STATUS_te en_status)
	Enables or disables the USART transmitter (TE bit).
void	usart_set_reception (USART_REGDEF_ts *usart_instance, EN_STATUS_te en_status)
	Enables or disables the USART receiver (RE bit).
void	usart_get_name (USART_REGDEF_ts const usart_instance, char name)
	Returns the name string of a USART peripheral instance (e.g. "USART1").
void	usart1_irq_data_recv_callback (uint8_t data)
	RXNE callback for USART1. Called by USART1_IRQHandler on each received byte.
void	usart6_irq_data_recv_callback (uint8_t data)
	RXNE callback for USART6. Called by USART6_IRQHandler on each received byte.

Detailed Description

STM32F401RE USART driver public API.

Author: github.com/Baksi675

This module provides a driver for the STM32F401RE USART peripheral, supporting asynchronous (UART) mode with configurable baud rate, parity, data width, stop bits, oversampling, hardware flow control, and interrupt-driven reception.

Transmission and reception are controlled independently:

Call usart_set_transmission with ENABLE to enable the TX path.
Call usart_set_reception with ENABLE to enable the RX path.

Interrupt-driven reception requires the application to override the weak callback functions:

usart1_irq_data_recv_callback — called by USART1_IRQHandler on RXNE
usart6_irq_data_recv_callback — called by USART6_IRQHandler on RXNE

If no override is provided, the default weak alias spins in an infinite loop.

Note: Only RXNE interrupt is currently implemented. TX interrupts and synchronous mode (USART_MODE_SYNC) are not yet supported.

Version: 0.1

Date: 2026-01-22

Definition in file stm32f401re_usart.h.
