Menu module public API. More...

#include <stdint.h>
#include "common.h"
#include "ssd1309.h"
#include "err.h"
#include "configuration.h"

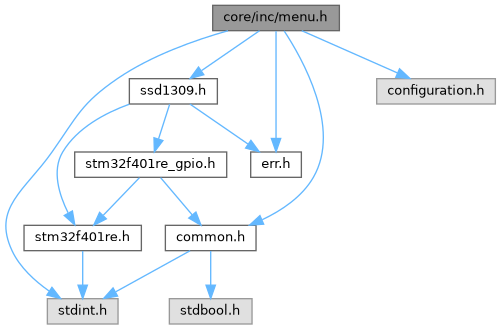

Include dependency graph for menu.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	MENU_CFG_ts
	Configuration structure for initializing a menu handle. More...

Typedefs
typedef struct menu_handle_s	MENU_HANDLE_ts
	Opaque handle representing a menu instance.

Enumerations
enum	MENU_TYPE_ts { MENU_TYPE_SELECTABLE , MENU_TYPE_DATA_VIEW }
	Determines the rendering and interaction mode of a menu. More...

Functions
ERR_te	menu_init_subsys (void)
	Initializes the menu subsystem.
ERR_te	menu_deinit_subsys (void)
	Deinitializes the menu subsystem.
ERR_te	menu_start_subsys (void)
	Starts the menu subsystem.
ERR_te	menu_stop_subsys (void)
	Stops the menu subsystem.
ERR_te	menu_init_handle (MENU_CFG_ts menu_cfg, MENU_HANDLE_ts *menu_handle_o)
	Initializes and registers a menu handle.
ERR_te	menu_run_handle (MENU_HANDLE_ts *menu_handle)
	Renders a single menu to the display.
ERR_te	menu_run_handle_all (void)
	Renders all registered menus to the display.
ERR_te	menu_get_selected_option (MENU_HANDLE_ts const menu_handle, char selected_option_o)
	Retrieves the string of the currently highlighted option.
ERR_te	menu_scroll (MENU_HANDLE_ts *menu_handle, VERTICAL_DIR_te vertical_dir)
	Moves the menu selection cursor by one step in the given direction.
ERR_te	menu_get_prev_menu (MENU_HANDLE_ts menu_handle, MENU_HANDLE_ts *prev_menu_handle_o)
	Pops and returns the previous menu from the navigation history stack.
ERR_te	menu_set_prev_menu (MENU_HANDLE_ts menu_handle, MENU_HANDLE_ts prev_menu_handle)
	Pushes a menu onto the navigation history stack of another menu.

Detailed Description

Menu module public API.

This module provides an OLED display menu system backed by the SSD1309 driver. Two menu types are supported:

Selectable (MENU_TYPE_SELECTABLE): a scrollable list of static string options. The currently highlighted option can be retrieved via menu_get_selected_option.
Data view (MENU_TYPE_DATA_VIEW): a scrollable list that interleaves static option labels with live values fetched at render time via a MENU_CFG_ts::get_value_fn callback.

Both types support a navigation history stack via menu_set_prev_menu and menu_get_prev_menu, allowing a back-navigation pattern.

Typical usage:

Definition in file menu.h.
