log.h File Reference

Log subsystem public API. More...

#include "stm32f401re.h"
#include "stm32f401re_usart.h"
#include "stm32f401re_gpio.h"
#include "err.h"
#include "configuration.h"
#include "modules.h"

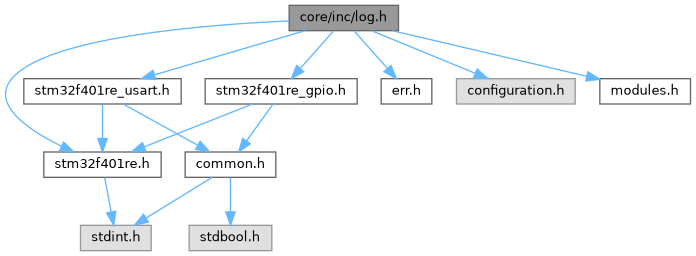

Include dependency graph for log.h:

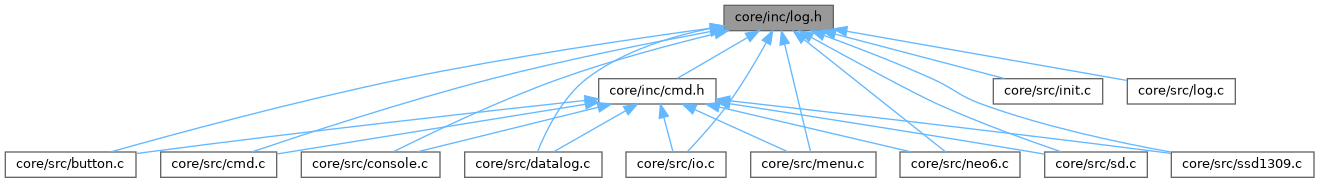

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	LOG_HANDLE_ts
	Configuration handle for initializing the log subsystem. More...

Macros
#define	LOG_INFO(subsys, lvl, fmt, ...)
#define	LOG_DEBUG(subsys, lvl, fmt, ...)
#define	LOG_WARNING(subsys, lvl, fmt, ...)
#define	LOG_ERROR(subsys, lvl, fmt, ...)
#define	LOG_CRITICAL(subsys, lvl, fmt, ...)

Enumerations
enum	LOG_LEVEL_te {   LOG_LEVEL_INFO , LOG_LEVEL_DEBUG , LOG_LEVEL_WARNING , LOG_LEVEL_ERROR ,   LOG_LEVEL_CRITICAL , LOG_LEVEL_NONE , LOG_LEVEL_COUNT }
	Log severity levels, in ascending order of severity. More...

Functions
ERR_te	log_init (LOG_HANDLE_ts *log_handle)
	Initializes the log subsystem.
ERR_te	log_deinit (void)
	Deinitializes the log subsystem.
ERR_te	log_print (MODULES_te subsys, LOG_LEVEL_te subsys_log_level, LOG_LEVEL_te log_level, char *msg,...)
	Prints a formatted message to the serial terminal if the severity threshold is met.
ERR_te	log_get_level_name (LOG_LEVEL_te log_level, char *str)
	Converts a LOG_LEVEL_te value to its lowercase string name.
ERR_te	log_level_to_int (char const *str, LOG_LEVEL_te *log_level_o)
	Converts a log level name string to its LOG_LEVEL_te value.
ERR_te	log_set_force_disable (bool bool_status)
	Enables or disables forced suppression of all log output.

Detailed Description

Log subsystem public API.

Author

github.com/Baksi675

This module provides serial logging over USART with per-message severity levels and per-subsystem log level filtering. Each log message is prefixed with an RTC timestamp, the severity level, and the originating subsystem name.

Logging is controlled at two levels:

• Compile time: define CONFIG_COMPILE_WITH_LOGGING to enable the LOG_INFO, LOG_DEBUG, LOG_WARNING, LOG_ERROR, and LOG_CRITICAL macros. Without this define, all macros expand to no-ops and the logging overhead is eliminated entirely.
• Runtime: each subsystem holds a LOG_LEVEL_te variable. A message is only printed if its severity is greater than or equal to the subsystem's current level. The level can be adjusted at runtime via the CLI.

Typical usage:

• Populate a LOG_HANDLE_ts and call log_init once at startup (typically via init_log)
• Use the LOG_INFO / LOG_ERROR / etc. macros throughout the codebase
• Call log_set_force_disable to suppress output during console input

Version

0.1

Date

2026-01-23

Copyright

Copyright (c) 2026

Definition in file log.h.
