Menu Public APIs

Functions
ERR_te	menu_init_subsys (void)
	Initializes the menu subsystem.
ERR_te	menu_deinit_subsys (void)
	Deinitializes the menu subsystem.
ERR_te	menu_start_subsys (void)
	Starts the menu subsystem.
ERR_te	menu_stop_subsys (void)
	Stops the menu subsystem.
ERR_te	menu_init_handle (MENU_CFG_ts *menu_cfg, MENU_HANDLE_ts **menu_handle_o)
	Initializes and registers a menu handle.
ERR_te	menu_run_handle (MENU_HANDLE_ts *menu_handle)
	Renders a single menu to the display.
ERR_te	menu_run_handle_all (void)
	Renders all registered menus to the display.
ERR_te	menu_get_selected_option (MENU_HANDLE_ts const *menu_handle, char *selected_option_o)
	Retrieves the string of the currently highlighted option.
ERR_te	menu_scroll (MENU_HANDLE_ts *menu_handle, VERTICAL_DIR_te vertical_dir)
	Moves the menu selection cursor by one step in the given direction.
ERR_te	menu_get_prev_menu (MENU_HANDLE_ts *menu_handle, MENU_HANDLE_ts **prev_menu_handle_o)
	Pops and returns the previous menu from the navigation history stack.
ERR_te	menu_set_prev_menu (MENU_HANDLE_ts *menu_handle, MENU_HANDLE_ts *prev_menu_handle)
	Pushes a menu onto the navigation history stack of another menu.

Detailed Description

Function Documentation

menu_init_subsys()

ERR_te menu_init_subsys

(

void

)

Initializes the menu subsystem.

See also

menu_init_subsys

Definition at line 159 of file menu.c.

                              {
    ERR_te err = 0;

    if(internal_state.initialized) {
        return ERR_MODULE_ALREADY_INITIALIZED;
    }

    internal_state = (struct internal_state_s){ 0 };

    internal_state.log_level = LOG_LEVEL_INFO;
    internal_state.subsys = MODULES_MENU;
    internal_state.initialized = true;
    internal_state.started = false;

    init_log();

    err = cmd_register(&menu_cmd_client_info);
    if(err != ERR_OK) {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "menu_init_subsys: cmd_register error"
        );

        return err;
    }
    LOG_INFO(
        internal_state.subsys,
        internal_state.log_level,
        "menu_init_subsys: subsys initialized"
    );

    return ERR_OK;
}

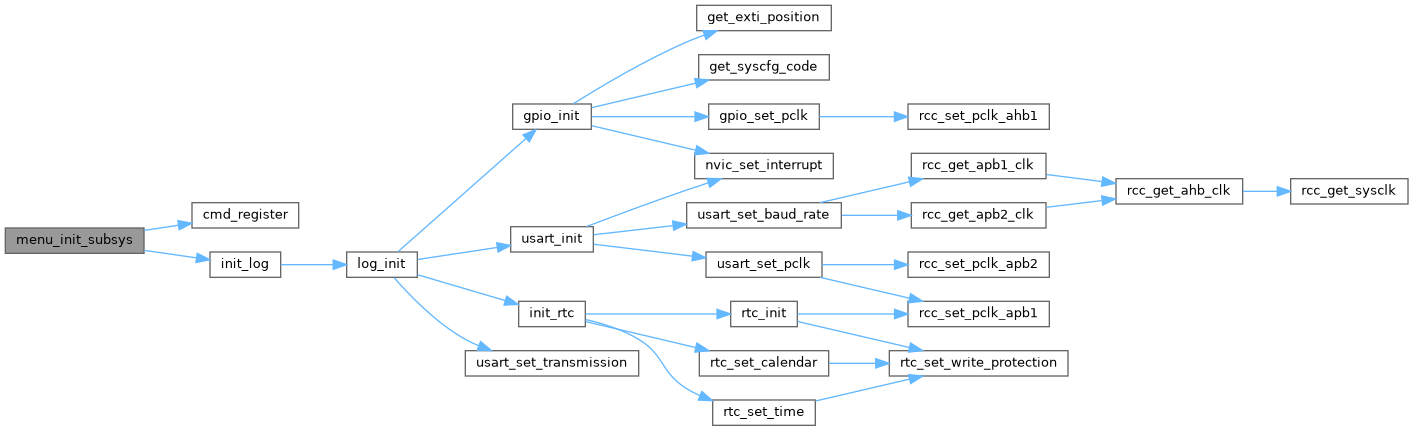

Here is the call graph for this function:

Here is the caller graph for this function:

menu_deinit_subsys()

ERR_te menu_deinit_subsys

(

void

)

Deinitializes the menu subsystem.

See also

menu_deinit_subsys

Definition at line 195 of file menu.c.

                                {
    if(internal_state.initialized && !internal_state.started) {
        internal_state = (struct internal_state_s){ 0 };

        cmd_deregister(&menu_cmd_client_info);
    }
    else {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "menu_deinit_subsys: subsys is not initialized or not stopped"
        );

        return ERR_DEINITIALIZATION_FAILURE;
    }
    LOG_INFO(
        internal_state.subsys,
        internal_state.log_level,
        "menu_deinit_subsys: subsys deinitialized"
    );

    return ERR_OK;
}

Here is the call graph for this function:

menu_start_subsys()

ERR_te menu_start_subsys

(

void

)

Starts the menu subsystem.

See also

menu_start_subsys

Definition at line 220 of file menu.c.

                               {
    if(internal_state.initialized && !internal_state.started) {
        internal_state.started = true;

        LOG_INFO(
            internal_state.subsys,
            internal_state.log_level,
            "menu_start_subsys: subsys started"
        );
    }
    else {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "menu_start_subsys: subsys not initialized or already started"
        );

        return ERR_UNKNOWN;
    }

    return ERR_OK;
}

Here is the caller graph for this function:

menu_stop_subsys()

ERR_te menu_stop_subsys

(

void

)

Stops the menu subsystem.

See also

menu_stop_subsys

Definition at line 244 of file menu.c.

                              {
    if(internal_state.initialized && internal_state.started) {
        internal_state.started = false;

        LOG_INFO(
            internal_state.subsys,
            internal_state.log_level,
            "menu_stop_subsys: subsys stopped"
        );
    }
    else {
        LOG_ERROR(
            internal_state.subsys,
            internal_state.log_level,
            "menu_stop_subsys: subsys not initialized or already already stopped"
        );

        return ERR_UNKNOWN;
    }

    return ERR_OK;
}

menu_init_handle()

ERR_te menu_init_handle	(	MENU_CFG_ts *	menu_cfg,
		MENU_HANDLE_ts **	menu_handle_o )

Initializes and registers a menu handle.

See also

menu_init_handle

Definition at line 268 of file menu.c.

                                                                               {
    if(internal_state.menu_num == CONFIG_MENU_MAX_OBJECTS)
        return ERR_NOT_ENOUGH_SPACE;

    // Count number of options in the input data
    uint8_t options_count = 0;
    while(menu_cfg->options[options_count][0] != '\0')
        options_count++;

    if(options_count == 0)
        return ERR_INVALID_ARGUMENT;
    else if(options_count > CONFIG_MENU_MAX_OPTIONS)
        return ERR_NOT_ENOUGH_SPACE;

    for(uint32_t i = 0; i < CONFIG_MENU_MAX_OBJECTS; i++) {
        if(internal_state.menus[i].in_use == false) {
            // Copy input data (menu title) to internal state
            txt_cpy(
                internal_state.menus[i].title,
                menu_cfg->title,
                get_str_len(menu_cfg->title)
            );

            // Copy input data (menu name) to internal state
            txt_cpy(
                internal_state.menus[i].name,
                menu_cfg->name,
                get_str_len(menu_cfg->name)
            );

            // Copy input data (menu options) to internal state
            for(uint8_t j = 0; j < options_count; j++) {
                txt_cpy(
                    internal_state.menus[i].options[j],
                    menu_cfg->options[j],
                    get_str_len(menu_cfg->options[j])
                );
            }

            // For dataview mode, options count covers both the labels and their live values
            if(menu_cfg->type == MENU_TYPE_DATA_VIEW) {
                options_count *= 2;
            }

            if(options_count > 7) {
                internal_state.menus[i].last_visible_option = 6;
            }
            else {
                internal_state.menus[i].last_visible_option = options_count - 1;
            }

            internal_state.menus[i].line_to_highlight = 1;
            internal_state.menus[i].selected_option = 0;
            internal_state.menus[i].prev_selected_option = 0;
            internal_state.menus[i].get_value_fn = menu_cfg->get_value_fn;
            internal_state.menus[i].type = menu_cfg->type;
            internal_state.menus[i].first_visible_option = 0;
            internal_state.menus[i].options_count = options_count;
            internal_state.menus[i].in_use = true;

            *menu_handle_o = &internal_state.menus[i];

            internal_state.menu_num++;

            break;
        }
    }

    return ERR_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

menu_run_handle()

ERR_te menu_run_handle

(

MENU_HANDLE_ts *

menu_handle

)

Renders a single menu to the display.

See also

menu_run_handle

Definition at line 340 of file menu.c.

                                                    {
    ssd1309_clear_rect(1, 1, 128, 64, false);

    if(menu_handle->type == MENU_TYPE_SELECTABLE) {
        menu_selectable_run(menu_handle);
    }
    else if(menu_handle->type == MENU_TYPE_DATA_VIEW) {
        menu_dataview_run(menu_handle);
    }

    ssd1309_update(false);

    return ERR_OK;
}

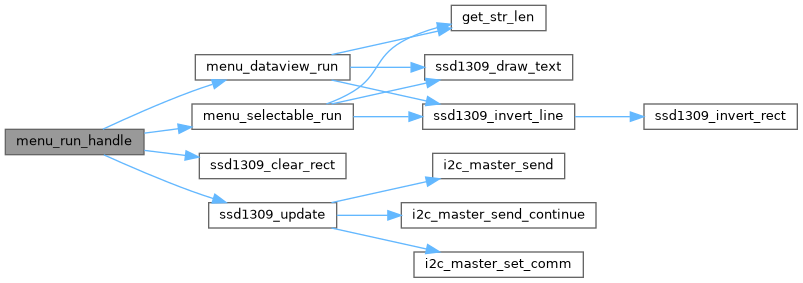

Here is the call graph for this function:

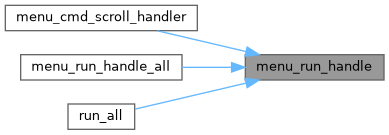

Here is the caller graph for this function:

menu_run_handle_all()

ERR_te menu_run_handle_all

(

void

)

Renders all registered menus to the display.

See also

menu_run_handle_all

Definition at line 356 of file menu.c.

                                 {
    for(uint32_t i = 0; i < CONFIG_MENU_MAX_OBJECTS; i++) {
        if(internal_state.menus[i].in_use == true) {
            menu_run_handle(&internal_state.menus[i]);
        }
    }

    return ERR_OK;
}

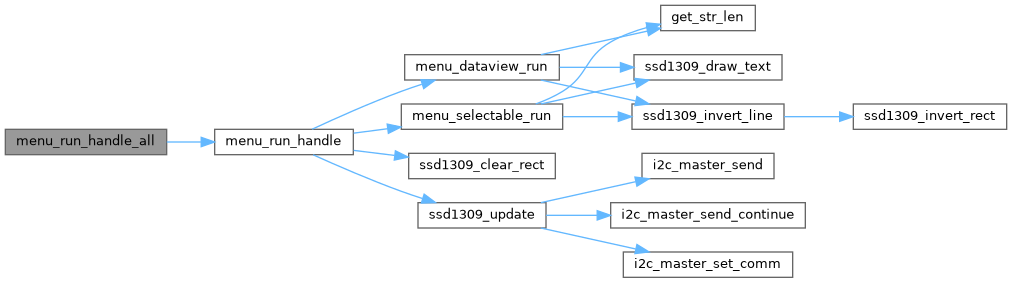

Here is the call graph for this function:

menu_get_selected_option()

ERR_te menu_get_selected_option	(	MENU_HANDLE_ts const *	menu_handle,
		char *	selected_option_o )

Retrieves the string of the currently highlighted option.

See also

menu_get_selected_option

Definition at line 367 of file menu.c.

                                                                                            {
    ERR_te err;

    if(menu_handle->type == MENU_TYPE_DATA_VIEW) {
        return ERR_INVALID_ARGUMENT;
    }

    err = str_cpy(
        selected_option_o,
        menu_handle->options[menu_handle->selected_option],
        get_str_len(menu_handle->options[menu_handle->selected_option]) + 1
    );
    if(err != ERR_OK) {
        return ERR_DATA_COPY_FAILURE;
    }

    return ERR_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

menu_scroll()

ERR_te menu_scroll	(	MENU_HANDLE_ts *	menu_handle,
		VERTICAL_DIR_te	vertical_dir )

Moves the menu selection cursor by one step in the given direction.

See also

menu_scroll

Definition at line 387 of file menu.c.

                                                                              {
    switch(vertical_dir) {
        case DOWN:
            menu_handle->selected_option += 1;
            break;

        case UP:
            menu_handle->selected_option -= 1;
            break;
    }

    return ERR_OK;
}

Here is the caller graph for this function:

menu_get_prev_menu()

ERR_te menu_get_prev_menu	(	MENU_HANDLE_ts *	menu_handle,
		MENU_HANDLE_ts **	prev_menu_handle_o )

Pops and returns the previous menu from the navigation history stack.

See also

menu_get_prev_menu

Definition at line 402 of file menu.c.

                                                                                            {
    if(menu_handle->prev_menu_count == 0)
        return ERR_INVALID_ARGUMENT;

    *prev_menu_handle_o = menu_handle->prev_menu[--menu_handle->prev_menu_count];

    return ERR_OK;
}

Here is the caller graph for this function:

menu_set_prev_menu()

ERR_te menu_set_prev_menu	(	MENU_HANDLE_ts *	menu_handle,
		MENU_HANDLE_ts *	prev_menu_handle )

Pushes a menu onto the navigation history stack of another menu.

See also

menu_set_prev_menu

Definition at line 412 of file menu.c.

                                                                                         {
    if(menu_handle->prev_menu_count == CONFIG_MENU_MAX_BUF_SIZE)
        return ERR_NOT_ENOUGH_SPACE;

    menu_handle->prev_menu[menu_handle->prev_menu_count++] = prev_menu_handle;

    return ERR_OK;
}

Here is the caller graph for this function:
