console.c File Reference

Console module implementation. More...

#include <stdbool.h>
#include "console.h"
#include "cbuf.h"
#include "common.h"
#include "err.h"
#include "stm32f401re.h"
#include "stm32f401re_gpio.h"
#include "stm32f401re_usart.h"
#include "cmd.h"
#include "configuration.h"
#include "log.h"
#include "init.h"

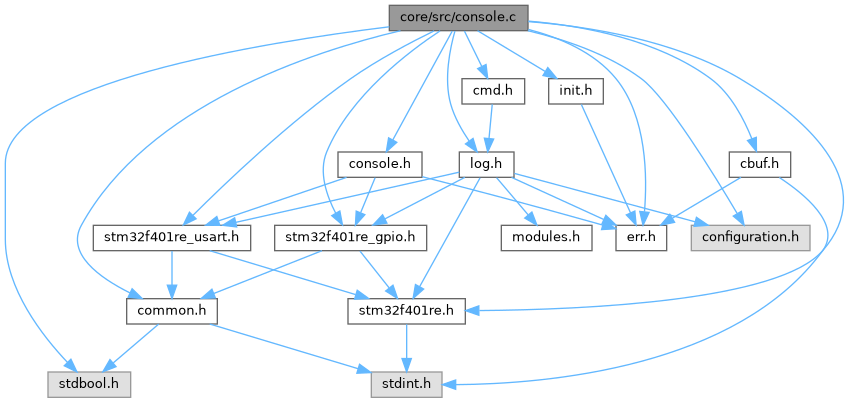

Include dependency graph for console.c:

Go to the source code of this file.

Classes
struct	internal_state_s
	Internal state of the SysTick driver. More...

Macros
#define	CONSOLE_MODE_CMD   3
	ASCII control code used to enter and exit console mode (Ctrl+C).

Functions
ERR_te	console_init (CONSOLE_HANDLE_ts *console_handle)
	Initializes the console subsystem.
ERR_te	console_run (void)
	Runs the console state machine.
void	usart1_irq_data_recv_callback (uint8_t data)
	USART RXNE interrupt callback. Writes the received byte into the USART receive buffer.

Variables
static uint8_t	usart_cbuf_mem [CONFIG_CONSOLE_USART_CBUF_SIZE]
	Backing memory for the USART receive circular buffer.
static uint8_t	console_cbuf_mem [CONFIG_CONSOLE_CBUF_SIZE]
	Backing memory for the console command accumulation buffer.
static struct internal_state_s	internal_state
	Singleton instance of the console subsystem internal state.

Detailed Description

Console module implementation.

Author

github.com/Baksi675

Version

0.1

Date

2025-10-21

Copyright

Copyright (c) 2025

Definition in file console.c.

Macro Definition Documentation

CONSOLE_MODE_CMD

#define CONSOLE_MODE_CMD   3

ASCII control code used to enter and exit console mode (Ctrl+C).

Definition at line 29 of file console.c.

Variable Documentation

usart_cbuf_mem

uint8_t usart_cbuf_mem[CONFIG_CONSOLE_USART_CBUF_SIZE]

static

Backing memory for the USART receive circular buffer.

Written by the USART ISR callback and drained by console_run. Size is defined by CONFIG_CONSOLE_USART_CBUF_SIZE and must be a power of two.

Definition at line 39 of file console.c.

console_cbuf_mem

uint8_t console_cbuf_mem[CONFIG_CONSOLE_CBUF_SIZE]

static

Backing memory for the console command accumulation buffer.

Accumulates echoed characters between console mode entry and the carriage return that triggers command execution. Size is defined by CONFIG_CONSOLE_CBUF_SIZE.

Definition at line 49 of file console.c.

internal_state

struct internal_state_s internal_state

static

Initial value:

= {
    .usart_data_recv_cbuf.ptr = usart_cbuf_mem,
    .usart_data_recv_cbuf.size = sizeof(usart_cbuf_mem),
    .usart_data_recv_cbuf.read_position = 0,
    .usart_data_recv_cbuf.write_position = 0,
    .console_cbuf.ptr = console_cbuf_mem,
    .console_cbuf.size = sizeof(console_cbuf_mem),
    .console_cbuf.read_position = 0,
    .console_cbuf.write_position = 0,
    .usart_instance = 0,
    .console_mode = false,
}

Singleton instance of the console subsystem internal state.

Definition at line 73 of file console.c.

                                                {
