io.c File Reference

This module implements a digital IO module. More...

#include "io.h"
#include "configuration.h"
#include "err.h"
#include "init.h"
#include "log.h"
#include "modules.h"
#include "stm32f401re_gpio.h"
#include "cmd.h"
#include "common.h"

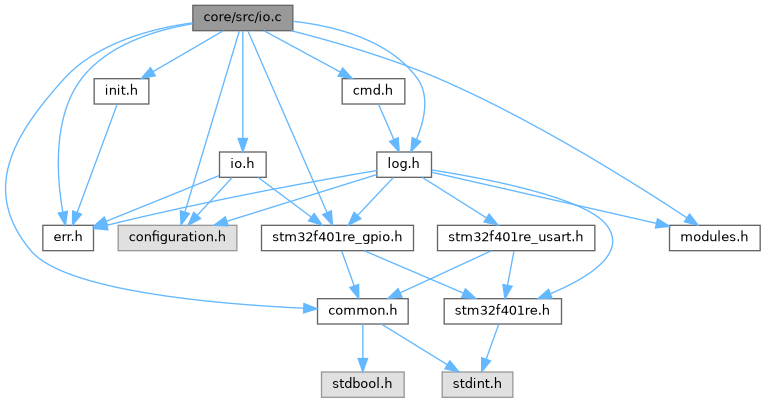

Include dependency graph for io.c:

Go to the source code of this file.

Classes
struct	io_handle_s
	Internal structure representing a single IO instance. More...
struct	internal_state_s
	Internal state of the SysTick driver. More...

Functions
static ERR_te	io_cmd_w_handler (uint32_t argc, char **argv)
	CLI handler for the "w" command. Writes a logic level to a named IO pin.
static ERR_te	io_cmd_r_handler (uint32_t argc, char **argv)
	CLI handler for the "r" command. Reads and logs the logic level of a named IO pin.
static ERR_te	io_cmd_info_handler (uint32_t argc, char **argv)
	CLI handler for the "info" command. Logs the name and GPIO mode of all active IO handles.
ERR_te	io_init_subsys (void)
	Initializes the IO subsystem.
ERR_te	io_deinit_subsys (void)
	Deinitializes the IO subsystem.
ERR_te	io_start_subsys (void)
	Starts the IO subsystem.
ERR_te	io_stop_subsys (void)
	Stops the IO subsystem.
ERR_te	io_init_handle (IO_CFG_ts *io_cfg, IO_HANDLE_ts **io_handle_o)
	Initializes and registers an IO handle.
ERR_te	io_deinit_handle (IO_HANDLE_ts const *io_handle)
	Deinitializes an IO handle.
ERR_te	io_write (IO_HANDLE_ts *io_handle, PIN_STATUS_te pin_status)
	Writes a logic level to an IO pin.
ERR_te	io_read (IO_HANDLE_ts const *io_handle, PIN_STATUS_te *pin_status_o)
	Reads the current logic level of an IO pin.

Variables
static struct internal_state_s	internal_state
	Singleton instance of the IO subsystem internal state.
static CMD_INFO_ts	io_cmds []
	Table of CLI commands registered by the IO subsystem.
static CMD_CLIENT_INFO_ts	io_cmd_client_info
	Registration descriptor passed to the command subsystem.

Detailed Description

This module implements a digital IO module.

Author

github.com/Baksi675

Date

2026-01-20

Copyright

Copyright (c) 2026

Definition in file io.c.

Variable Documentation

internal_state

struct internal_state_s internal_state

static

Singleton instance of the IO subsystem internal state.

Definition at line 68 of file io.c.

io_cmds

CMD_INFO_ts io_cmds[]

static

Initial value:

= {
    {
        .name = "w",
        .help = "Writes to an IO pin, usage: io w <name> <1|0>",
        .handler = io_cmd_w_handler
    },
    {
        .name = "r",
        .help = "Reads from an IO pin, usage: io r <name>",
        .handler = io_cmd_r_handler
    },
    {
        .name = "info",
        .help = "Shows IO information, usage: io info",
        .handler = io_cmd_info_handler
    }
}

Table of CLI commands registered by the IO subsystem.

Registered with the command subsystem via io_cmd_client_info during io_init_subsys.

Definition at line 82 of file io.c.

                               {
    {
        .name = "w",
        .help = "Writes to an IO pin, usage: io w <name> <1|0>",
        .handler = io_cmd_w_handler
    },
    {
        .name = "r",
        .help = "Reads from an IO pin, usage: io r <name>",
        .handler = io_cmd_r_handler
    },
    {
        .name = "info",
        .help = "Shows IO information, usage: io info",
        .handler = io_cmd_info_handler
    }
};

io_cmd_client_info

CMD_CLIENT_INFO_ts io_cmd_client_info

static

Initial value:

= {
    .cmds_ptr = io_cmds,
    .num_cmds = sizeof(io_cmds) / sizeof(io_cmds[0]),
    .name = "io",
    .log_level_ptr = &internal_state.log_level
}

Registration descriptor passed to the command subsystem.

Bundles the command table, its size, the subsystem name prefix used on the CLI, and a pointer to the runtime log-level variable.

Definition at line 107 of file io.c.

                                               {
    .cmds_ptr = io_cmds,
    .num_cmds = sizeof(io_cmds) / sizeof(io_cmds[0]),
    .name = "io",
    .log_level_ptr = &internal_state.log_level
};
