Common utility module public API. More...

#include <stdint.h>
#include <stdbool.h>

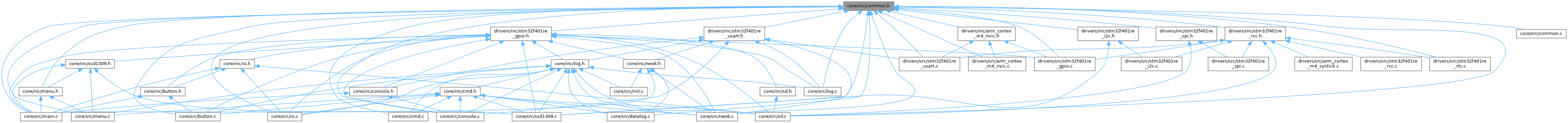

Include dependency graph for common.h:

This graph shows which files directly or indirectly include this file:

Macros
#define	BCD_TO_DEC(BCD)
	Converts a BCD-encoded byte to its decimal equivalent.
#define	DEC_TO_BCD(DEC)
	Converts a decimal value to its BCD-encoded byte equivalent.
#define	DELAY(ms)
	Blocking delay using the system tick counter.

Enumerations
enum	PIN_STATUS_te { LOW , HIGH }
	Represents the logical level of a GPIO pin. More...
enum	EN_STATUS_te { DISABLE , ENABLE }
	Represents an enabled or disabled state. More...
enum	VERTICAL_DIR_te { DOWN , UP }
	Represents a vertical movement direction. More...

Functions
uint32_t	get_str_len (char const *str)
	Returns the length of a string, excluding the null terminator.
void	int_to_str (int num, char *str)
	Converts an integer to its decimal string representation.
int	str_to_int (const char *str)
	Converts a decimal string to an integer.
void	double_to_str (double num, char *str, int8_t frac_digits)
	Converts a double to a decimal string with a fixed number of fractional digits.
void	hex_byte_to_str (uint8_t byte, char *str)
	Converts a single byte to a two-character uppercase hexadecimal string.
void	str_set (char target_str, char const host_str, uint32_t host_str_len, uint32_t pos)
	Overwrites a region of a target string with the contents of a source string.
int32_t	get_pow (int32_t base, int32_t exponent)
	Computes an integer power.
void	arr_cmprs (char *arr, uint8_t len)
	Compresses an array by removing null bytes and shifting remaining elements left.
bool	str_cmp (const char str1, const char str2)
	Compares two null-terminated strings for equality.
uint8_t	ascii_hex_to_byte (char high, char low)
	Converts two ASCII hex characters into a single byte value.
int	str_tokenize (char str, const char separator, uint16_t max_tokens, char *tokens, uint16_t num_tokens)
	Splits a string into tokens separated by a given delimiter.
bool	str_to_bool (char const *str)
	Converts a string representation of a boolean to a bool value.
int	str_cpy (char str_to, const char str_from, uint32_t len)
	Copies a null-terminated string into a destination buffer.
int	txt_cpy (char txt_to, const char txt_from, uint32_t len)
	Copies a fixed-length block of text into a destination buffer.
bool	is_pow (uint32_t num)
	Checks whether a number is a power of two.
uint32_t	extract_bits (const uint8_t *data, uint16_t start_bit, uint8_t num_bits)
	Extracts a range of bits from a big-endian byte array.

Detailed Description

Common utility module public API.

Author: github.com/Baksi675

This module provides general-purpose utility functions and type definitions shared across all other modules, including:

String manipulation (copy, compare, tokenize, convert)
Numeric conversion (integer, double, hex to/from string)
Bit extraction from byte arrays
Common type definitions (pin state, enable state, direction)
Convenience macros (BCD conversion, blocking delay)

Version: 0.1

Date: 2026-01-22

Definition in file common.h.
