Button module public API. More...

#include <stdint.h>
#include "io.h"
#include "stm32f401re.h"
#include "stm32f401re_gpio.h"
#include "err.h"

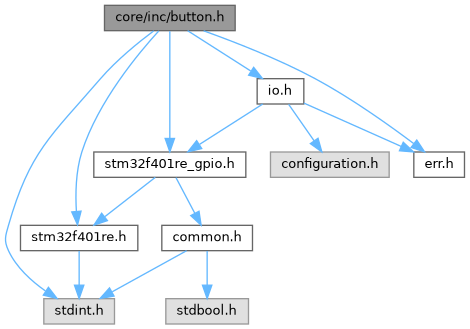

Include dependency graph for button.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	BUTTON_CFG_ts
	Configuration structure for initializing a button instance. More...

Typedefs
typedef struct button_handle_s	BUTTON_HANDLE_ts
	Opaque handle representing a button instance.

Enumerations
enum	BUTTON_PUSHED_TYPE_te { BUTTON_PUSHED_TYPE_LOW , BUTTON_PUSHED_TYPE_HIGH }
	Defines the active level of a button press. More...

Functions
ERR_te	button_init_subsys (void)
	Initializes the button subsystem.
ERR_te	button_deinit_subsys (void)
	Deinitializes the button subsystem.
ERR_te	button_start_subsys (void)
	Starts the button subsystem.
ERR_te	button_stop_subsys (void)
	Stops the button subsystem.
ERR_te	button_init_handle (BUTTON_CFG_ts button_cfg, BUTTON_HANDLE_ts *button_handle)
	Initializes and registers a button handle.
ERR_te	button_deinit_handle (BUTTON_HANDLE_ts const *button_handle)
	Deinitializes a button handle.
ERR_te	button_run_handle (BUTTON_HANDLE_ts *button_handle)
	Executes the state machine for a single button.
ERR_te	button_run_handle_all (void)
	Runs the state machine for all registered buttons.
ERR_te	button_get_pushed_state (BUTTON_HANDLE_ts const button_handle, bool pushed_state_o)
	Retrieves the pushed (pressed) state of a button.
ERR_te	button_get_held_state (BUTTON_HANDLE_ts const button_handle, bool held_state_o)
	Retrieves the held state of a button.

Detailed Description

Button module public API.

This module provides functionality for handling physical button inputs, including:

The module supports multiple button instances and integrates with the system's GPIO, logging, and command subsystems.

Typical usage:

Definition in file button.h.
