Circular Buffer Public APIs

Functions
ERR_te	cbuf_read (CBUF_HANDLE_ts *cbuf_handle, uint8_t *output_buf_o)
	Reads all available data from the circular buffer.
ERR_te	cbuf_write (CBUF_HANDLE_ts *cbuf_handle, uint8_t *input_buf, uint32_t input_len)
	Writes data from an input buffer into the circular buffer.
ERR_te	cbuf_len (CBUF_HANDLE_ts const *cbuf_handle, uint8_t *len_o)
	Returns the number of bytes currently stored in the circular buffer.

Detailed Description

Function Documentation

cbuf_read()

ERR_te cbuf_read	(	CBUF_HANDLE_ts *	cbuf_handle,
		uint8_t *	output_buf_o )

Reads all available data from the circular buffer.

Reads all available data from the circular buffer into an output buffer.

See also

cbuf_read

Definition at line 22 of file cbuf.c.

                                                                     {
    uint8_t len = 0;

    while(1) {
        cbuf_len(cbuf_handle, &len);

        if(len == 0) {
            break;
        }

        *output_buf_o = cbuf_handle->ptr[cbuf_handle->read_position];
        output_buf_o++;
        cbuf_handle->read_position = (cbuf_handle->read_position + 1) & (cbuf_handle->size - 1);
    }

    return ERR_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

cbuf_write()

ERR_te cbuf_write	(	CBUF_HANDLE_ts *	cbuf_handle,
		uint8_t *	input_buf,
		uint32_t	input_len )

Writes data from an input buffer into the circular buffer.

See also

cbuf_write

Definition at line 41 of file cbuf.c.

                                                                                       {
    uint8_t len;

    while(input_len != 0) {
        cbuf_len(cbuf_handle, &len);

        if(len == cbuf_handle->size - 1) {
            return ERR_BUFFER_FULL;
        }

        cbuf_handle->ptr[cbuf_handle->write_position] = *input_buf;
        input_len--;
        input_buf++;
        cbuf_handle->write_position = (cbuf_handle->write_position + 1) & (cbuf_handle->size - 1);
    }

    return ERR_OK;
}

Here is the call graph for this function:

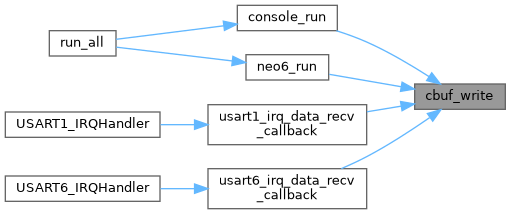

Here is the caller graph for this function:

cbuf_len()

ERR_te cbuf_len	(	CBUF_HANDLE_ts const *	cbuf_handle,
		uint8_t *	len_o )

Returns the number of bytes currently stored in the circular buffer.

See also

cbuf_len

Definition at line 61 of file cbuf.c.

                                                                   {
    *len_o = (cbuf_handle->write_position - cbuf_handle->read_position) & (cbuf_handle->size - 1);

    return ERR_OK;
}

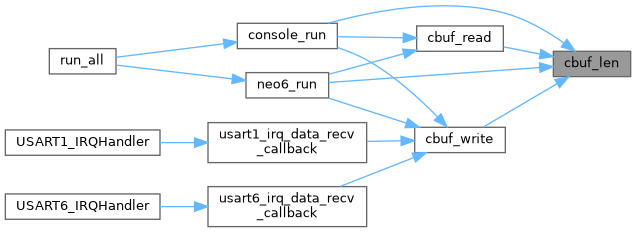

Here is the caller graph for this function:
